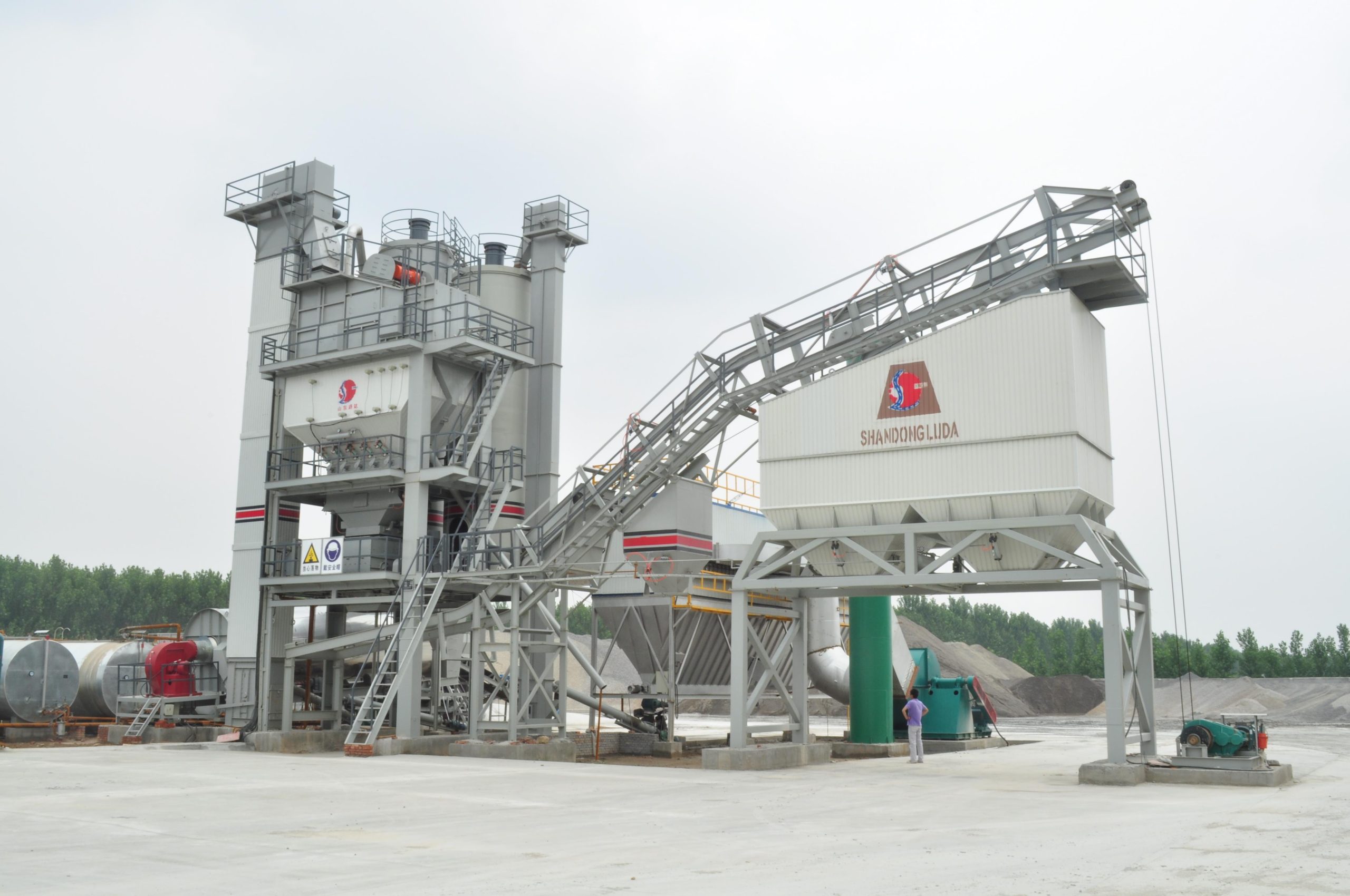

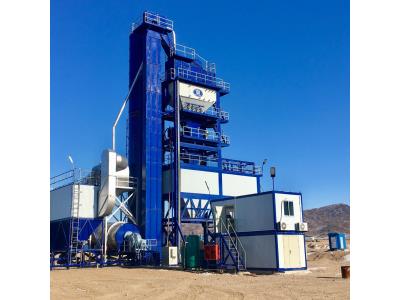

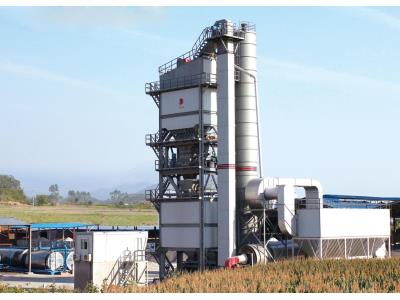

QLB1500 asphalt mixing plant
Inquire NowDescription
The QLB1500 asphalt mixing plant is engineered for high performance and efficiency, making it an essential solution for asphalt production. Designed with advanced technology, this plant features a comprehensive aggregate supply system that includes protective plates on the hopper to prevent contamination, vibrators for smooth aggregate flow, and grid plates for screening oversized materials. The drying drum is built with high-strength boiler steel, ensuring superior thermal insulation and durability. It incorporates an automatic lubrication system to reduce maintenance costs. The burner is specially designed to use various fuels, including coal, diesel, and natural gas, offering flexibility and efficiency.
With a state-of-the-art weighing and mixing system utilizing renowned TOLEDO components, the QLB1500 guarantees high accuracy in production. It employs a twin horizontal mixing shaft with an automatic lubrication mechanism. The dust collection system features a two-stage method for effective particle removal, ensuring compliance with environmental standards. Control operations are centralized in a dedicated room, utilizing a PLC/computer automatic system for seamless operation, with all electrical components sourced from Siemens.
Specifications
| Attribute | Details |
|---|---|
| Model | QLB1500 |
| Capacity | 120 t/h |
| Main Power | ≈367 kW |
| Mixer Capacity | 1500 kgs |
| Dedust Method | Bag type collector |
| Measuring Accuracy (Static State) | Aggregate ±0.5%, Asphalt ±0.25%, Powder ±0.25% |
| Burner Fuel Material | Coal, Diesel, Heavy Oil, Natural Gas |
| Asphalt Tank | 25~200 t |
Additional Information
- Aggregate supply system includes protective plates, vibrators, and grid plates for optimal performance.
- High-strength wear-resistant materials used in the drying drum and rolling components.
- Centralized control room for efficient operation and oversight.
