QLN1004 Tractor For Sale
Inquire NowDescription

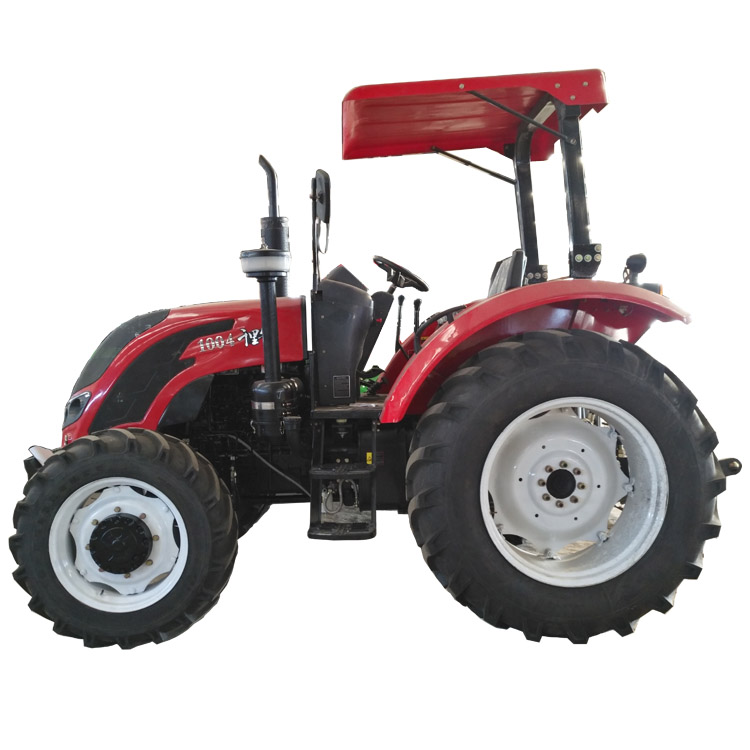

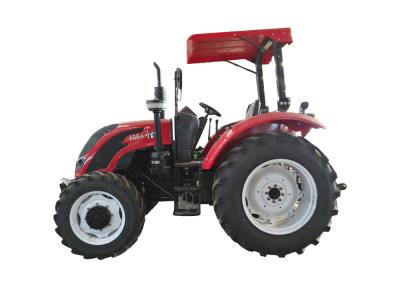

The QLN1004 tractor is a robust and efficient farming machine equipped with a YTO/YUCHAI engine that delivers excellent performance while ensuring low fuel consumption. Designed for agricultural tasks, this tractor features a durable LUK 12-inch double-acting clutch, providing reliable operation across various terrains. With a generous 150L fuel tank, it is built to handle long hours of work without frequent refueling. The QLN1004 is also designed with a wheel tread of 1520 mm in the front and 1620 mm in the rear, which enhances its stability and traction on the field. Its PTO speed of 540/1000 rpm and II Rear Mount 3-point linkage make it compatible with a wide range of attachments, making it an ideal choice for farmers seeking versatility and efficiency.
Specifications
| Model | QLN-1004 |
|---|---|
| Dimensions (mm) | Length × Width × Height: 4280 × 2085 × 2925 |
| Wheel Tread (mm) | Front: 1520, Rear: 1620 |
| Min. Ground Clearance (mm) | 450 |
| Dry Mass (kg) | With Cab: 3915 |
| Engine Brand | YTO/YUCHAI |
| Engine Model | Direct-injection, water-cooled 4-cylinder diesel engine |
| Number of Cylinders | 4 |
| Cooling System Type | Water Cooled |
| Rated Power (kW) | 73.5 |
| Rated Speed (r/min) | 2200 |
| Fuel Tank Volume (L) | 150 |
| Clutch | LUK 12 in., double-acting, independent, dry clutch |
| Gear Box | F16+R8 Shuttle Creeper Shift |
| Braking System | Static hydraulic pressure, multi-disc, wet |
| Tyre Model | Front: 12.4-24, Rear: 16.4-34 |
| Steering System | Hydraulic Steering |
Additional Information
The QLN1004 tractor is designed for maximum efficiency and durability, making it an essential tool for modern agricultural practices. Its compact design allows for easy maneuverability in tight spaces, while the powerful engine ensures it can tackle even the most demanding tasks. Farmers can rely on this tractor to enhance productivity and streamline their operations.
