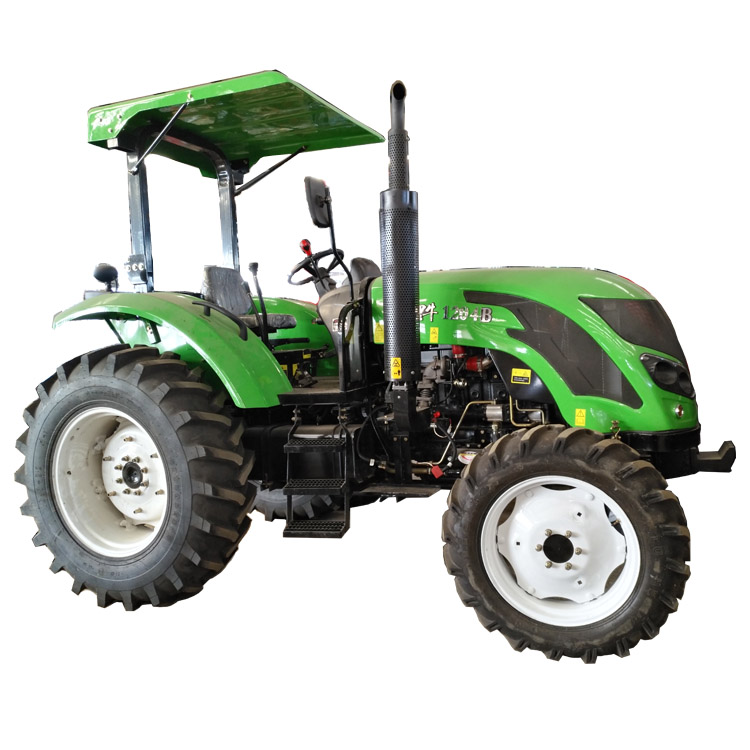

QLN1204 farm tractor
Inquire NowDescription
The QLN1204 farm tractor represents a blend of robust engineering and efficient performance, equipped with a powerful YTO/YUCHAI engine. Designed for agricultural tasks, this tractor is built to excel with features such as a LUK 12-inch double-acting clutch and a substantial 150L fuel tank. Its advanced specifications ensure excellent fuel efficiency and economic operation, making it a reliable choice for modern farming needs.
Product Advantages:
- Powered by a renowned YTO/YUCHAI engine, delivering exceptional performance with low fuel consumption.
- Features a double-acting, dry, dual-stage clutch for enhanced control.
- Wheel tread dimensions of 1520 mm in the front and 1620 mm in the rear enhance stability and traction.
- Generous 150L fuel tank capacity supports extended use without frequent refueling.
- PTO speed options of 540/1000 rpm, with a II Rear Mount 3-point linkage for versatile attachment compatibility.
Specifications
| Model | QLN-1204 |
|---|---|
| Dimensions (L×W×H mm) | 4280 × 2085 × 2925 |
| Wheel Tread (mm) | Front: 1520, Rear: 1620 |
| Min. Ground Clearance (mm) | 450 |
| Dry Mass (With Cab kg) | 3915 |
| Engine Brand | YTO/YUCHAI |
| Engine Model | Direct-injection, water-cooled 4-cylinder diesel engine |
| Number of Cylinders | 4 |
| Cooling System Type | Water Cooled |
| Rated Power (kw) | 88.2 |
| Rated Speed (r/min) | 2200 |
| Fuel Tank Volume (L) | 150 |
| Clutch | LUK 12in., double-acting, independent, dry clutch |
| Gear Box | F16+R8 Shuttle Creeper Shift |
| Braking System | Static hydraulic pressure, multi-disc, wet |
| Tyre Model | Front: 12.4-24, Rear: 16.4-34 |
| Steering System | Hydraulic Steering |
Additional Information
For optimal performance, regular maintenance is recommended. Ensure the tractor is serviced according to the manufacturer’s guidelines to prolong its lifespan and efficiency.
