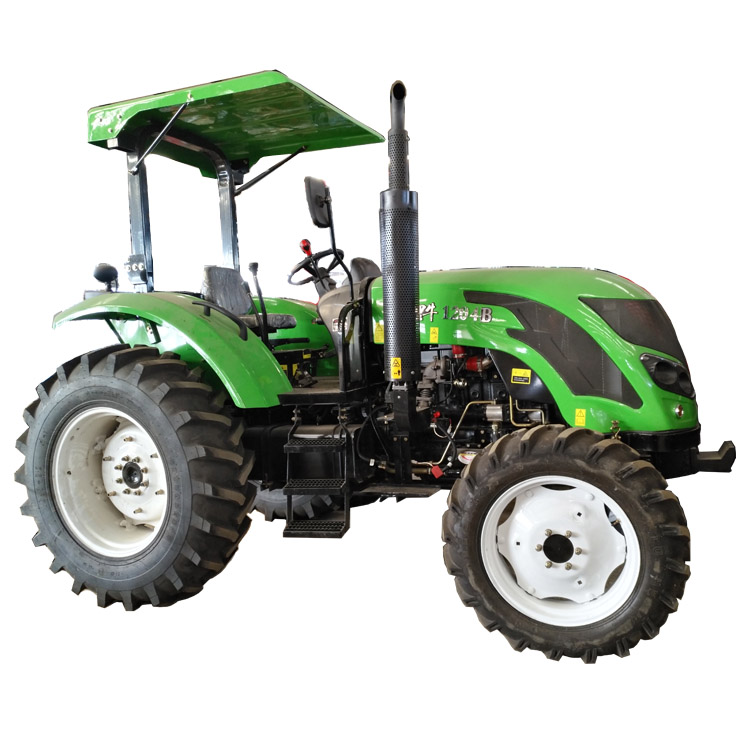

QLN1204B Equipment Tractor For Agriculture
Inquire NowDescription
The QLN1204B Equipment Tractor is a robust and efficient agricultural machine designed for a variety of farming tasks. Powered by a renowned, directly injected vertical water-cooled 4-stroke YTO/YUCAHI engine, this tractor ensures reliable performance. It features a versatile gear system with F10 forward and R10 reverse speeds, making it suitable for diverse agricultural operations. With a PTO speed of 540/760 rpm and a 100-liter fuel tank, the QLN1204B is built for durability and extended use.
Equipped with a dual-function, independent, dry clutch from LUK, this tractor offers excellent control and responsiveness. The rear-mounted 3-point linkage enhances its compatibility with various implements, allowing for seamless integration into your farming routine. The tractor’s tires are specifically designed for agricultural use, with front dimensions of 8.3-24 mm and rear dimensions of 14.9-30 mm, ensuring optimal traction and stability on different terrains.
Specifications
| Model | QLN-1204B |
|---|---|
| Dimensions (Length×Width×Height mm) | 4385 × 1980 × 2830 |
| Dry Mass (With Cab kg) | 3480 |
| Engine Brand | YTO/YUCHAI |
| Engine Model | Directly Injection Vertical Water Cooled 4-stroke |
| Number of Cylinders | 4 |
| Cooling System Type | Water Cooled |
| Rated Power (kW) | 88.2 |
| Rated Speed (r/min) | 2200 |
| Fuel Tank Volume (L) | 100 |
| Transmission System | Gear Box F10+R10 Shuttle Shift |
| Clutch | LUK 12in., dual-function, independent, dry clutch |
| Braking System | Single chip, disc, mechanical operation, dry |
| Front Tyre | 8.3-24 |
| Rear Tyre | 14.9-30 |
| Steering System | Hydraulic Steering |
Additional Information
For optimal performance and longevity, regular maintenance checks are recommended. Ensure proper lubrication of the engine and transmission systems. Store the tractor in a dry place to protect it from adverse weather conditions.
