Description

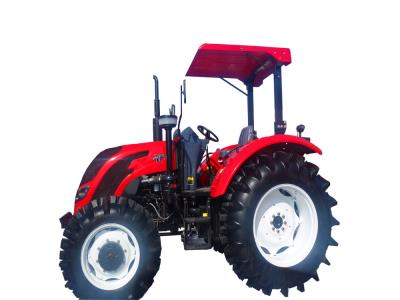

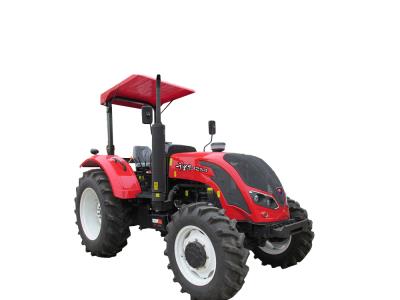

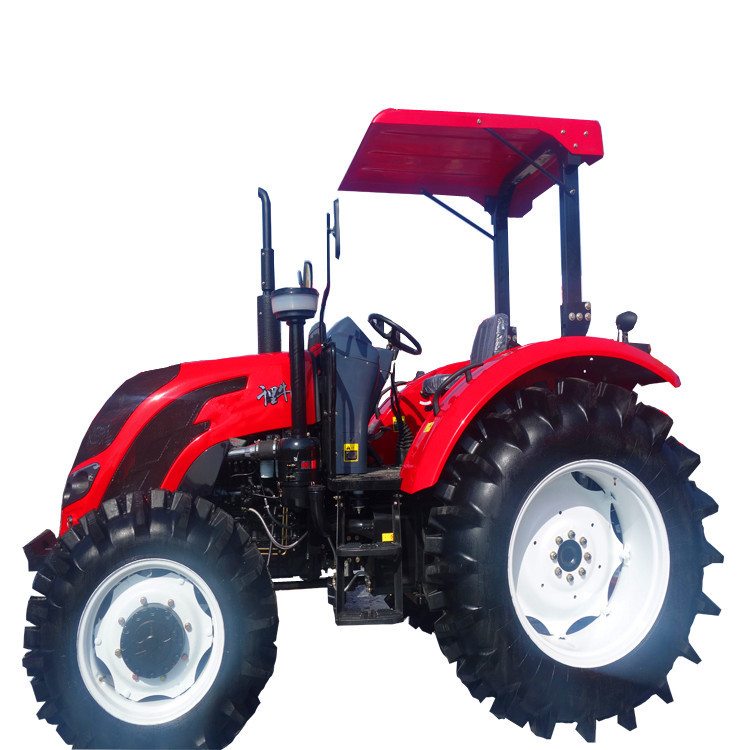

The QLN1254 Farm Tractor is engineered for exceptional performance, equipped with a renowned YTO/YUCHAI engine that features a reliable directly injection vertical water-cooled four-stroke system. This robust tractor is designed to meet the demanding needs of agricultural work, boasting a versatile gear box with F16 forward and R8 reverse speeds. The QLN1254 is perfect for various farming tasks, ensuring efficiency and reliability.
This tractor’s PTO speed reaches 760/1000 rpm, and it is fitted with a II Rear Mount 3-point linkage for enhanced functionality. The front and rear tyre sizes of 14.9-26 and 18.4-38 respectively, provide excellent traction and stability on various terrains. The tractor also incorporates a LUK 12-inch dry clutch, offering smooth operation and control, along with a substantial 150-liter fuel tank for extended work periods.
Specifications
| Attribute | Details |
|---|---|
| Model | QLN-1254 |
| Dimensions (L×W×H mm) | 5060 × 2345 × 2995 |
| Dry Mass (kg) | 5350 |
| Engine Brand | YTO/YUCHAI |
| Engine Model | Directly Injection Vertical Water Cooled 4-stroke |
| Number of Cylinders | 6 |
| Cooling System Type | Water Cooled |
| Rated Power (kw) | 92 KW |
| Rated Speed (r/min) | 2300 |
| Fuel Tank Volume (L) | 150 |
| Gear Box | F16+R8 Shuttle Shift |
| Clutch | LUK 12in., dual-function, independent, dry clutch |
| Braking System | Static hydraulic pressure, double disc |
| Front Tyre | 14.9-26 |
| Rear Tyre | 18.4-38 |
| Steering System | Hydraulic Steering |
Additional Information
For optimal performance, regular maintenance of the engine and transmission system is recommended. Ensure the tractor is properly serviced to extend its lifespan and maintain efficiency.
