Description

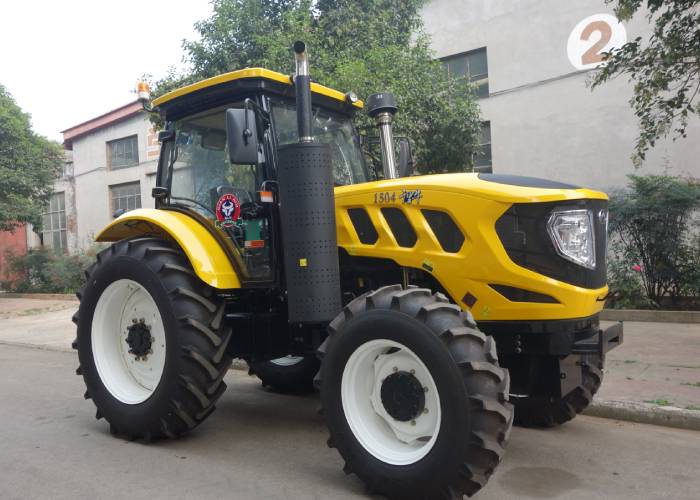

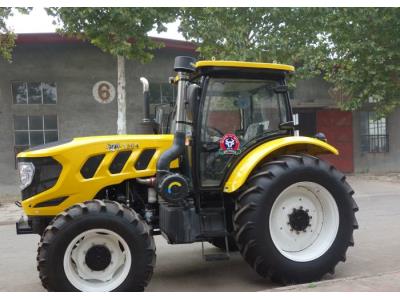

The QLN1504 Tractor is engineered for superior performance in agricultural tasks, powered by the renowned YTO/YUCAHI engine. This robust machine features a directly injected, vertical water-cooled 4-stroke engine that ensures efficient operation. Equipped with a sophisticated F16+R8 gearbox, it offers seamless transitions between gear shifts. The tractor’s PTO speed reaches 540/1000 rpm, making it versatile for various farming implements.
With a substantial fuel tank capacity of 150 liters, the QLN1504 is designed to handle extended hours of operation without frequent refueling. The tractor is fitted with durable tyres, measuring 13.6-24 in the front and 18.4-38 in the rear, ensuring stability and traction on various terrains. Its advanced LUK 12-inch dual-function dry clutch provides independent control for enhanced maneuverability.
Specifications
| Specification | Details |
|---|---|
| Model | QLN-1504 |
| Dimensions (L×W×H) | 5060 mm × 2345 mm × 2995 mm |
| Dry Mass (with Cab) | 5050 kg |
| Engine Brand | YTO/YUCHAI |
| Engine Model | Directly Injection Vertical Water Cooled 4-stroke |
| Number of Cylinders | 6 |
| Cooling System Type | Water Cooled |
| Rated Power | 93.8 kW |
| Rated Speed | 2200 r/min |
| Fuel Tank Volume | 100 L |
| Gear Box | F16+R18 Shuttle Shift |
| Clutch | LUK 12in., dual-function, independent, dry clutch |
| Braking System | Single chip, disc, mechanical operation, dry |
| Front Tyre | 13.6-24 |
| Rear Tyre | 18.4-38 |
| Steering System | Hydraulic Steering |
Additional Information
This tractor is ideal for farmers seeking a reliable and powerful machine to enhance productivity. It is built to withstand the rigors of agricultural use, ensuring durability and efficiency.
