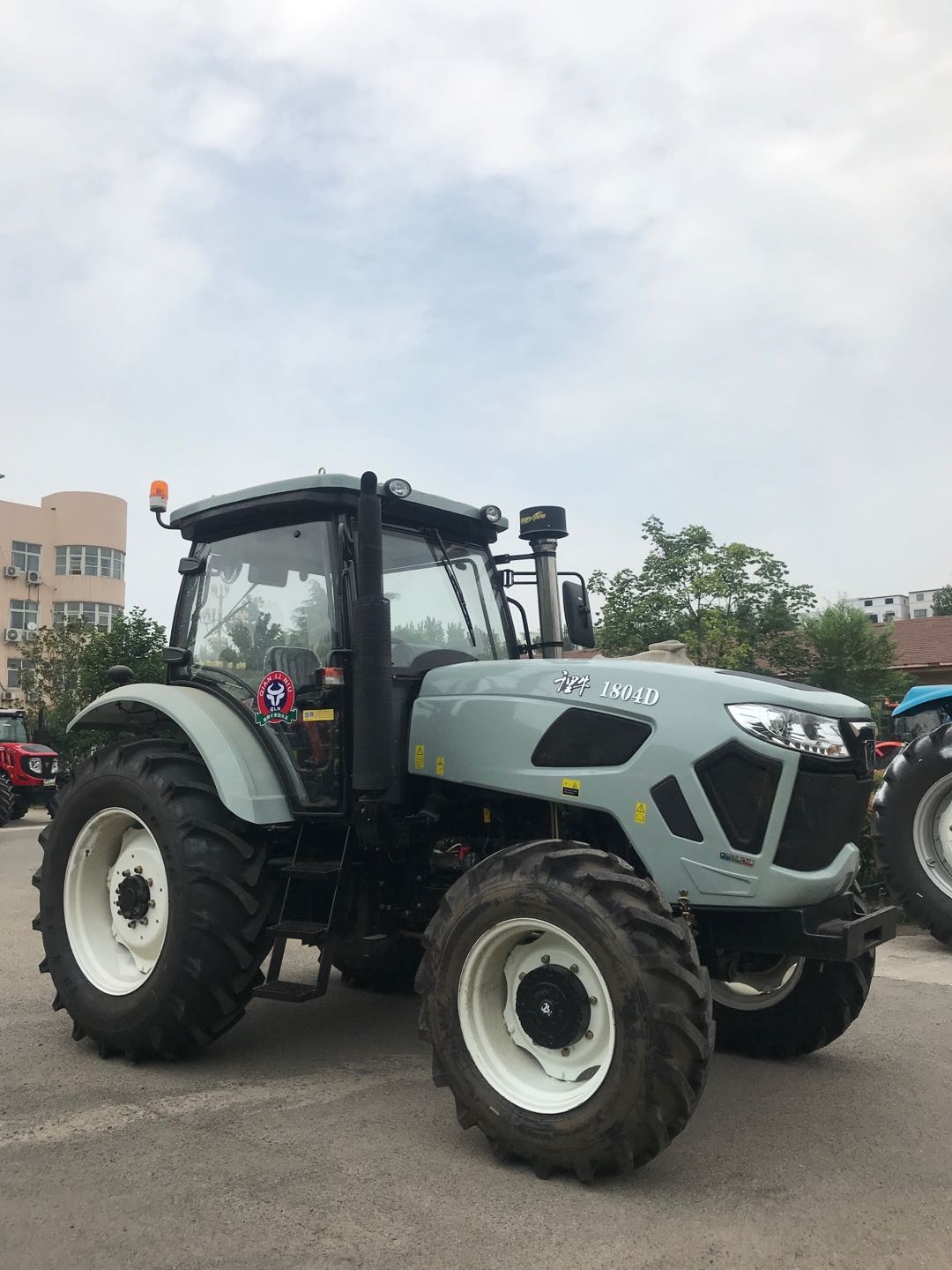

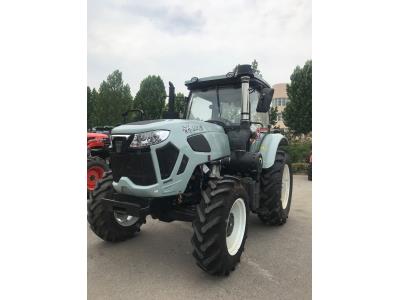

QLN1804 Tractor
Inquire NowDescription
The QLN1804B tractor is a powerful agricultural machine designed for efficiency and reliability. Equipped with a robust YTO/Weichai engine, this tractor ensures high performance and durability. Its dual-function LUK 14-inch clutch and ZF brand front axle provide seamless operation, making it an ideal choice for various farming tasks. The tractor features a renowned direct injection vertical water-cooled 6-stroke engine, complemented by a versatile gear box with F16 forward and R8 reverse speeds. With a PTO speed of 540/760 rpm and a III Rear Mount 3-point linkage, the QLN1804B is engineered for superior functionality. The tractor’s impressive 270 L fuel tank capacity ensures extended operational periods, allowing you to complete your tasks efficiently.
Specifications
| Model | QLN1804 |
|---|---|
| Dimensions (mm) | Length × Width × Height: 5150 × 2345 × 2920 |
| Wheel Tread (mm) | Front Wheel: 1850, Rear Wheel: 1870 |
| Min. Ground Clearance (mm) | 480 |
| Dry Mass (kg) | With Cab: 5700 |
| Engine Brand | YTO/Weichai |
| Engine Model | Directly Injection Vertical Water Cooled 4-stroke |
| Number of Cylinders | 6 |
| Cooling System Type | Water Cooled |
| Rated Power (kw) | 132.4 KW |
| Rated Speed (r/min) | 2200 |
| Fuel Tank Volume (L) | 270 |
| Clutch | LUK 14in., dual-function, independent, dry clutch |
| Gear Box | F16+R8 |
| Braking System | Static hydraulic pressure, double disc |
| Front Tyre | 13.6-24 |
| Rear Tyre | 18.4-38 |
| Steering System | Hydraulic Steering |
Additional Information
This tractor is designed for optimal performance in agricultural tasks, ensuring ease of operation and maintenance. Regular checks and servicing are recommended to keep the QLN1804B in peak condition.
