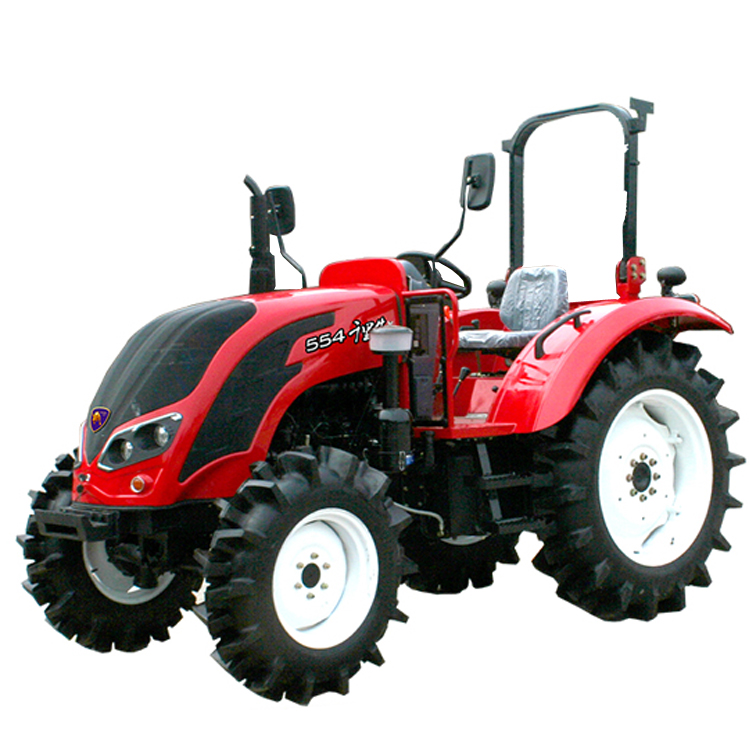

QLN554 Farm Wheel Tractor
Inquire NowQLN554 tractor adopt renowned directly injection vertical water cooled 4-stroke YTO/YUCAHI engine.And the gear box use F12+R12.
QLN554 farm wheel tractor advantages:
1.Tractor adopt renowned directly injection vertical water cooled 4-stroke YTO/YUCAHI engine.And the gear box use F12+R12.
2.The tractors PTO speed:540/760 rpm.Linkage: I Rear Mount 3-point Linkage.
3.Tyre of farming tractors F/R (mm):8.3-20/12.4-28.
4.YTO engine tractor clutch use 10 in.,dual-function,independent,dry clutch.
5.This agricultural tractor model adopt 80 L fuel tank.
Product parameters:
|
Specification |
|||
|
Model |
QLN-554 |
||
|
Dimensions |
Length×Width×Height(mm) |
3980×1635×2400 |
|
|
Dry Mass |
With Cab(kg) |
2540 |
|
|
Engine |
Engine brand |
YTO |
|
|
Engine Model |
Directly Injection Vertical Water Cooled 4-stroke |
||
|
Number of Cylinder |
4 |
||
|
Cooling System Type |
Water Cooled |
||
|
Rated Power(kw) |
40.5 KW |
||
|
Rated Speed(r/min) |
2300 |
||
|
Fuel Tank |
Volume(L) |
80 |
|
|
Transmission System |
Gear Box |
F12+R12 Shuttle Shift |
|
|
Clutch |
10in,double-acting,semi-independent,dry clutch |
||
|
Braking System |
disc, mechanical operation,oil bath |
||
|
Running System |
Tyre Model |
Front tyre |
8.3-20 |
|
Rear tyre |
12.4-28 |
||
|
Steering System |
Hydraulic Steering |
||
