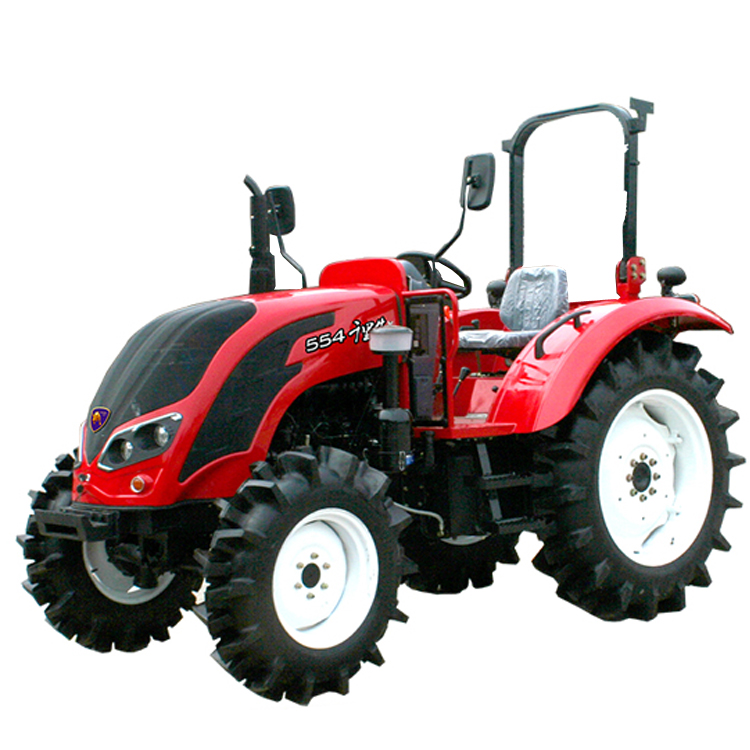

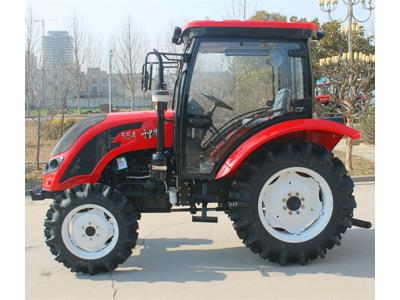

QLN554 Farm Wheel Tractor
Inquire NowDescription
The QLN554 Farm Wheel Tractor is engineered for efficiency and durability, featuring a renowned YTO/YUCAHI engine with direct injection and vertical water cooling. This robust 4-stroke engine powers the tractor through a versatile F12+R12 transmission system, making it an ideal choice for diverse agricultural tasks. With a PTO speed of 540/760 rpm and an 80 L fuel tank, this tractor ensures optimal performance and extended working hours on the field.
Designed with practicality in mind, the QLN554 comes equipped with a rear mount 3-point linkage system for easy attachment of implements. The front and rear tires are specifically sized at 8.3-20 mm and 12.4-28 mm, respectively, ensuring excellent traction and stability on various terrains. The dual-function, independent dry clutch enhances operational flexibility, allowing for smooth transitions between tasks.
Specifications
| Attribute | Details |
|---|---|
| Model | QLN-554 |
| Dimensions (mm) | 3980 × 1635 × 2400 |
| Dry Mass (kg) | 2540 (With Cab) |
| Engine Brand | YTO |
| Engine Model | Directly Injection Vertical Water Cooled 4-stroke |
| Number of Cylinders | 4 |
| Cooling System Type | Water Cooled |
| Rated Power (kw) | 40.5 KW |
| Rated Speed (r/min) | 2300 |
| Fuel Tank Volume (L) | 80 |
| Gear Box | F12+R12 Shuttle Shift |
| Clutch | 10 in., dual-acting, semi-independent, dry clutch |
| Braking System | Disc, mechanical operation, oil bath |
| Front Tyre Model | 8.3-20 |
| Rear Tyre Model | 12.4-28 |
| Steering System | Hydraulic Steering |
Additional Information
For optimal performance, ensure regular maintenance of the engine and transmission systems. Always check tire pressure before operation to enhance stability and efficiency during use.
