QLN704 tractor has YTO/YUCAHI engine, 8.3-20/12.4-38 model tyre, 80L fuel tank and other advantages.

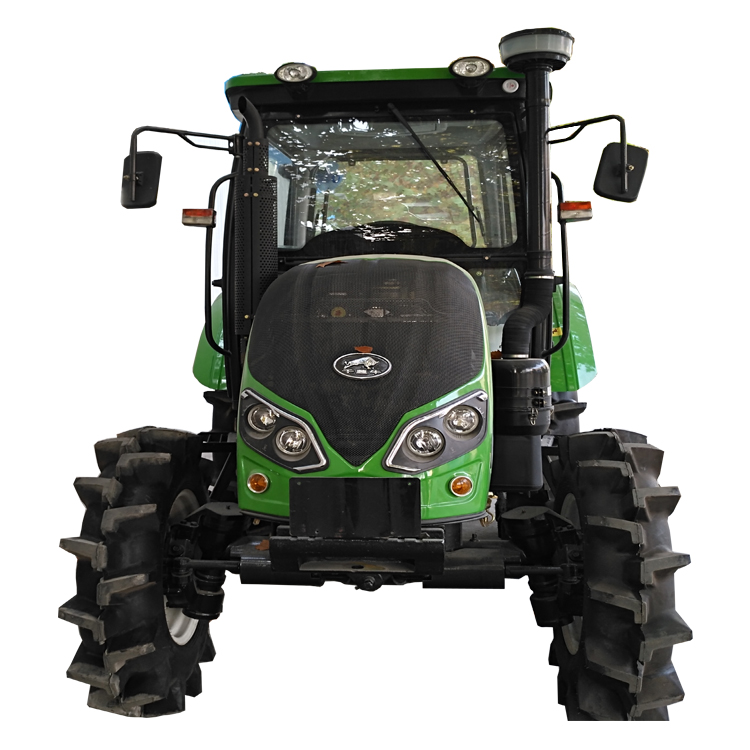

QLN704 wheel tractor
1.Tractor with front end loader adopt renowned directly injection vertical water cooled 4-stroke YTO/YUCAHI engine.And the gear
box use F12+R12.
2.The tractors PTO speed:540/760 rpm.Linkage:III Rear Mount 3-point Linkage.
3.Tyre of farming tractors F/R (mm):8.3-20/12.4-38.
4.YTO engine tractor clutch use 10in.,dual-function,independent,dry clutch.
5.This agricultural tractor model adopt 80 L fuel tank.
Product parameters:
|
Specifications
|
|
Model
|
QLN704
|
|
Dimensions
|
Length×Width×Height(mm)
|
3980×1635×2400
|
|
Wheel Tread(mm)
|
Front Wheel(mm)
|
1400
|
|
Rear Wheel(mm)
|
1300
|
|
Min.Ground Clearance(mm)
|
325
|
|
Dry Mass
|
With Cab(kg)
|
2540
|
|
Engine
|
Engine brand
|
YTO/WEICHAI
|
|
Engine Model
|
Directly Injection Vertical Water Cooled 4-stroke
|
|
Number of Cylinder
|
4
|
|
Cooling System Type
|
Water Cooled
|
|
Rated Power(kw)
|
51.5 KW
|
|
Rated Speed(r/min)
|
2300
|
|
Fuel Tank
|
Volume(L)
|
80
|
|
Transmission System
|
Clutch
|
10in.,dual-function,independent,dry clutch
|
|
Gear Box
|
F12+R12
|
|
Braking System
|
disc, mechanical operation,oil bath
|
|
Running System
|
Tyre Model
|
Front tyre
|
8.3-20
|
|
Rear tyre
|
12.4-28
|
|
Steering System
|
Hydraulic Steering
|
