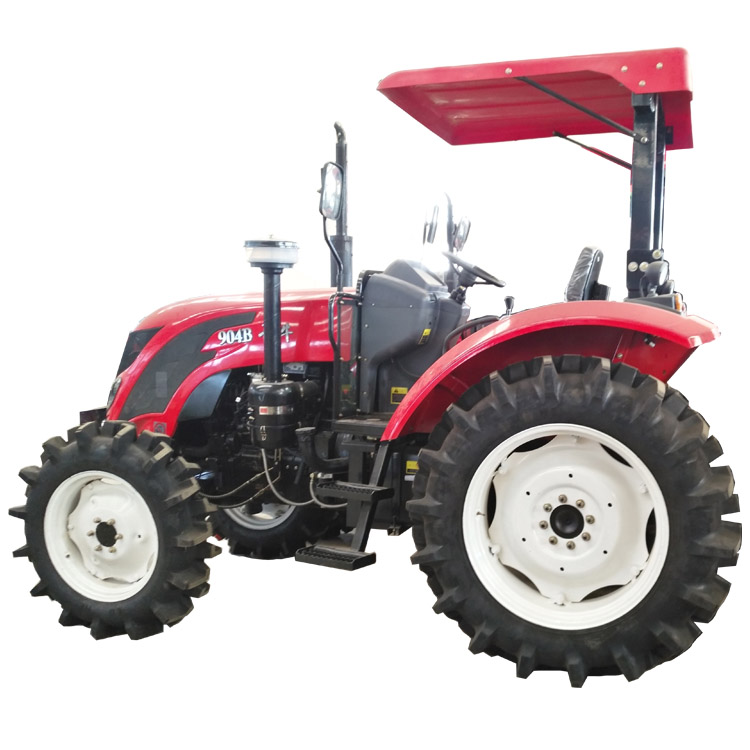

QLN904B Tractor Equipment
Inquire NowDescription
The QLN904B Tractor is engineered for superior performance and reliability, featuring a renowned directly injection vertical water-cooled 4-stroke YTO/YUCAHI engine. This powerful tractor is equipped with a F10+R10 gear box, ensuring smooth transitions and efficient operation across various terrains. Designed for agricultural excellence, it boasts a PTO speed of 540/760 RPM and a robust II Rear Mount 3-point Linkage system for enhanced versatility in fieldwork.
With a spacious 100 L fuel tank, the QLN904B is built to tackle demanding tasks without frequent refueling. Its durable tires, measuring 8.3-24 at the front and 14.9-30 at the rear, provide excellent traction for farming activities. The clutch system is equipped with a LUK 12-inch dual-function independent dry clutch, allowing for reliable control and performance.
Specifications
| Model | QLN-904B |
|---|---|
| Dimensions (mm) | 4285 × 1960 × 2830 |
| Dry Mass (kg) | 3480 |
| Engine Brand | YTO/YUCHAI |
| Engine Model | Directly Injection Vertical Water Cooled 4-stroke |
| Number of Cylinders | 4 |
| Cooling System Type | Water Cooled |
| Rated Power (kW) | 66.2 |
| Rated Speed (r/min) | 2200 |
| Fuel Tank Volume (L) | 100 |
| Transmission System | F10+R10 Shuttle Shift |
| Clutch | LUK 12in., dual-function, independent, dry clutch |
| Braking System | Single chip, disc, mechanical operation, dry |
| Front Tyre | 8.3-24 |
| Rear Tyre | 14.9-30 |
| Steering System | Hydraulic Steering |
Additional Information
For optimal performance, regular maintenance is recommended. Ensure the tractor is serviced according to the manufacturer’s guidelines to maintain its reliability and efficiency.
