rain gutter making machine automatic round steel gutter downpipe machine
Inquire NowDescription
The rain gutter making machine is an advanced automatic round steel gutter downpipe machine designed for efficient production of high-quality rain gutters. This innovative equipment utilizes a cold roll forming process that allows for seamless bending of the formed pipes, ensuring that the drainpipe and bending connect as a single unit. Unlike traditional PVC pipes, the final product boasts enhanced durability and longevity, making it a superior choice for construction projects. The machine is not only effective but also aesthetically pleasing, contributing to the overall image of the project.
Constructed with various components including an uncoiler, feed leading table, main machine, formation cutting device, hydraulic system, control system, and product bracket, this gutter cold roll forming machine is engineered for reliability and performance.
Specifications
| No. | Main Parameter of Gutter Roll Forming Machine | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 200-600mm |
| 3 | Rollers | 14-16 rows |
| 4 | Dimensions | 8.6 * 0.8 * 1.2 m |
| 5 | Power | 4+3 kW |
| 6 | Thickness of the plate | 0.3-0.8 mm |
| 7 | Productivity | 8-12 m/min |
| 8 | Diameter of the roller | 52 mm |
| 9 | Weight | About 4.5 T |
| 10 | Voltage | 380V 50Hz 3 phases |
| 11 | Rolling material | Carbon Steel 45# |
| 12 | Material of the cutting plate | Cr12 |
| 13 | Processing precision | Within 1.00 mm |
| 14 | Control system | PLC control |
| 15 | Side panel of machine | 14 mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 4.5 T |
Additional Information
Packaging Details: The main machine is nude, while the computer control box is packed with a wooden frame.
Delivery Detail: Approximately 20 days.

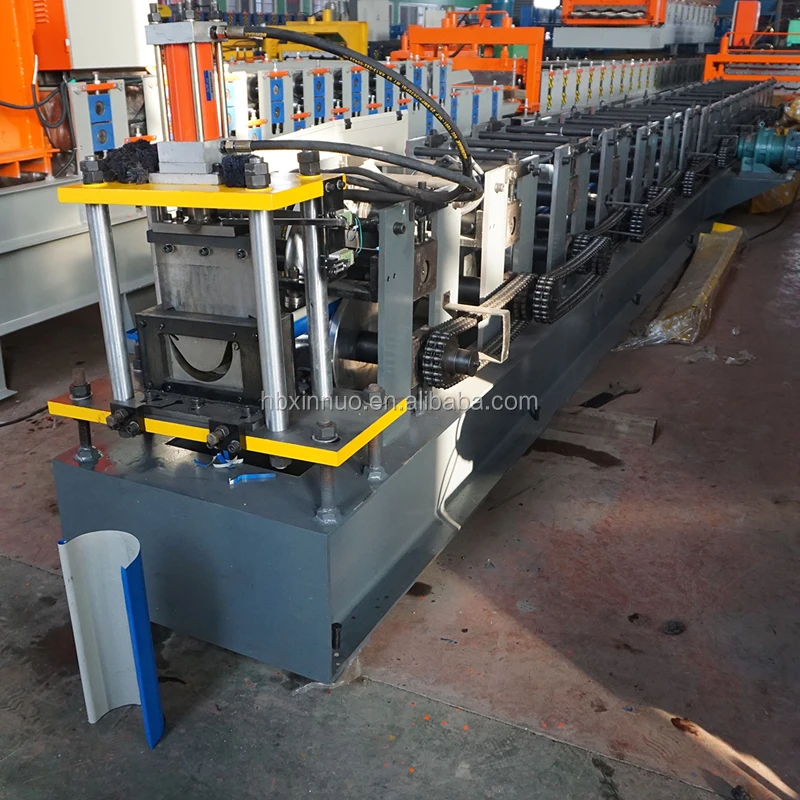

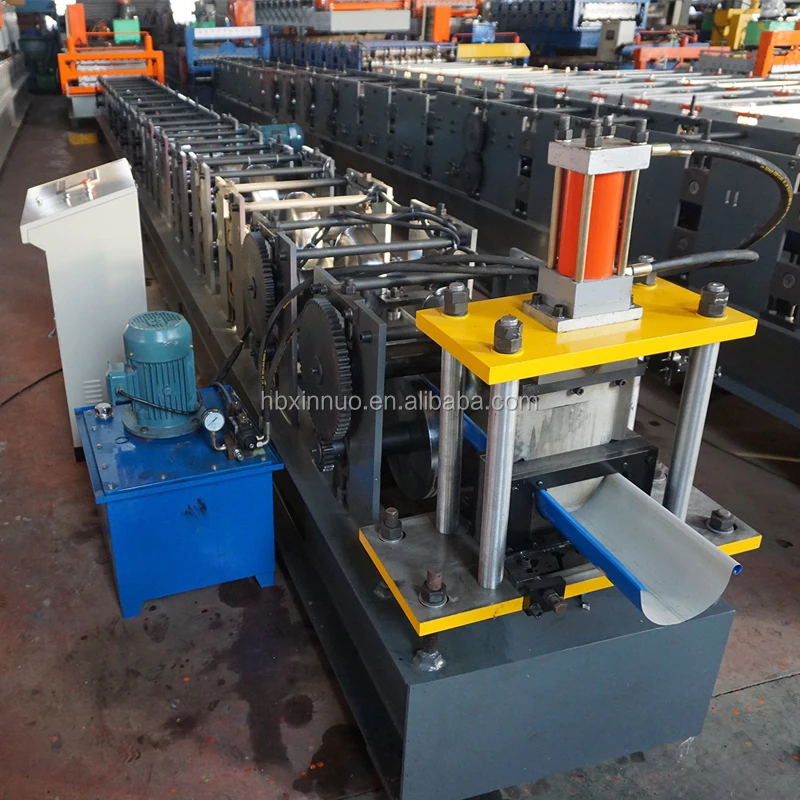

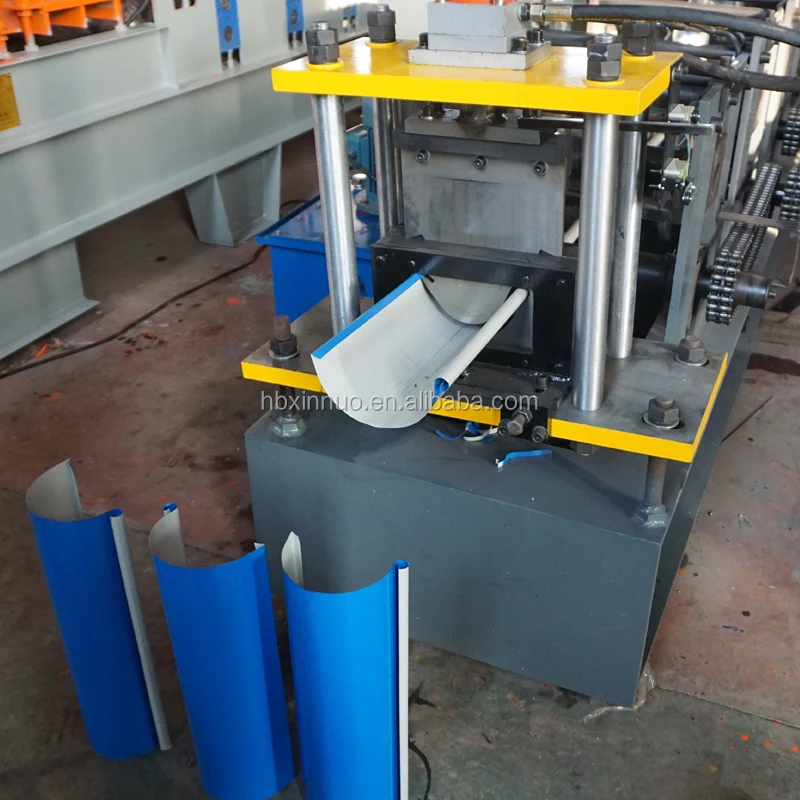

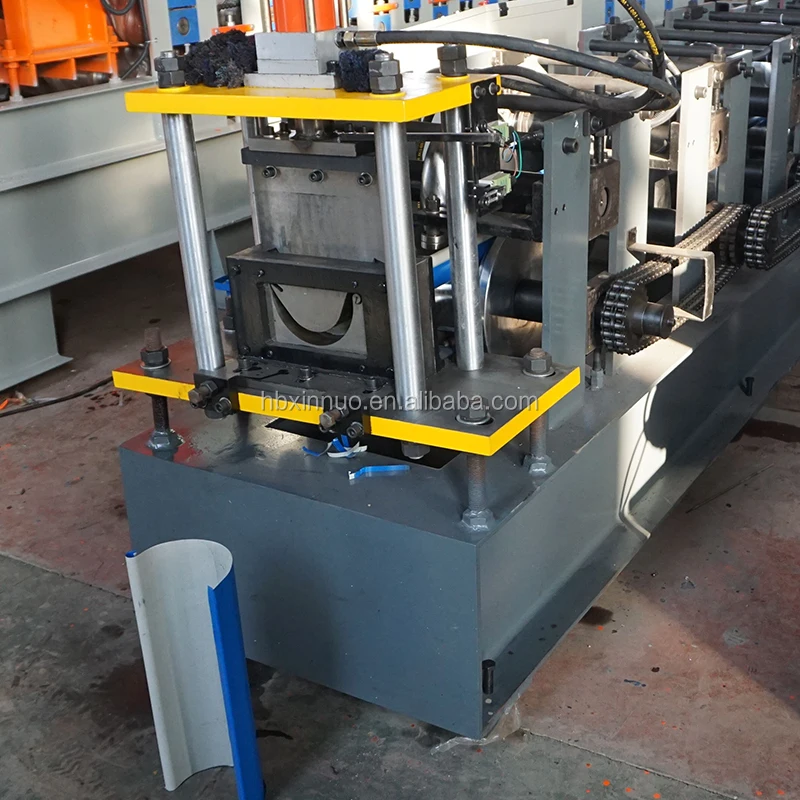

Product Images
