rain gutter making machine automatic round steel gutter downpipe machine
Inquire Now#### **Description**

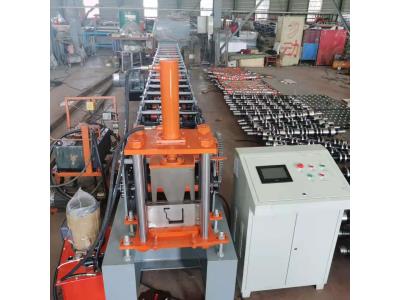

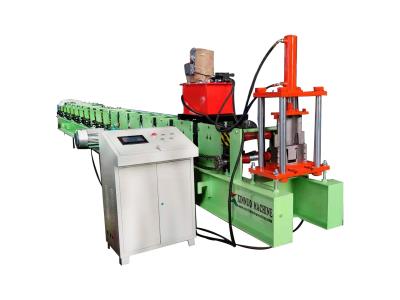

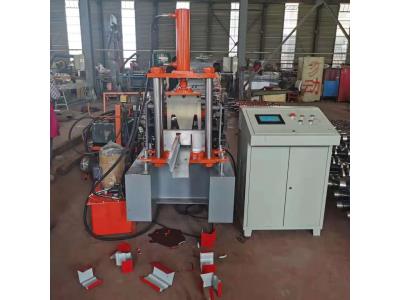

The automatic round steel gutter downpipe making machine is designed for the efficient production of seamless rain gutters. This advanced cold roll forming equipment not only bends the formed pipe but also connects the drainpipe seamlessly, enhancing the overall integrity and aesthetic of any project. Unlike traditional PPC pipes, products manufactured using this machine have a longer lifespan and are resistant to aging, making it a superior choice for modern construction needs. The machine is equipped with an uncoiler, a feeding table, a main forming unit, a cutting device, a hydraulic system, and a control system, all engineered for optimal performance and reliability.
#### **Specifications**
| No. | Main Parameter | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 200-600mm |
| 3 | Rollers | 14-16 rows |
| 4 | Dimensions | 8.6*0.8*1.2 m |
| 5 | Power | 4+3 kW |
| 6 | Thickness of the plate | 0.3-0.8 mm |
| 7 | Productivity | 8-12 m/min |
| 8 | Diameter of the roller | 52 mm |
| 9 | Weight | About 4.5 T |
| 10 | Voltage | 380V 50Hz 3 phases |
| 11 | Rolling material | Carbon Steel 45# |
| 12 | Material of the cutting plate | Cr12 |
| 13 | Processing precision | Within 1.00 mm |
| 14 | Control system | PLC control |
| 15 | Side panel of machine | 14 mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 4.5 T |
#### **Additional Information**
Packaging Details: The main machine is nude in the container, while the computer control box is packed with wooden packaging.
Delivery Detail: 20 days.
