rain gutter making machine automatic round steel gutter downpipe machine

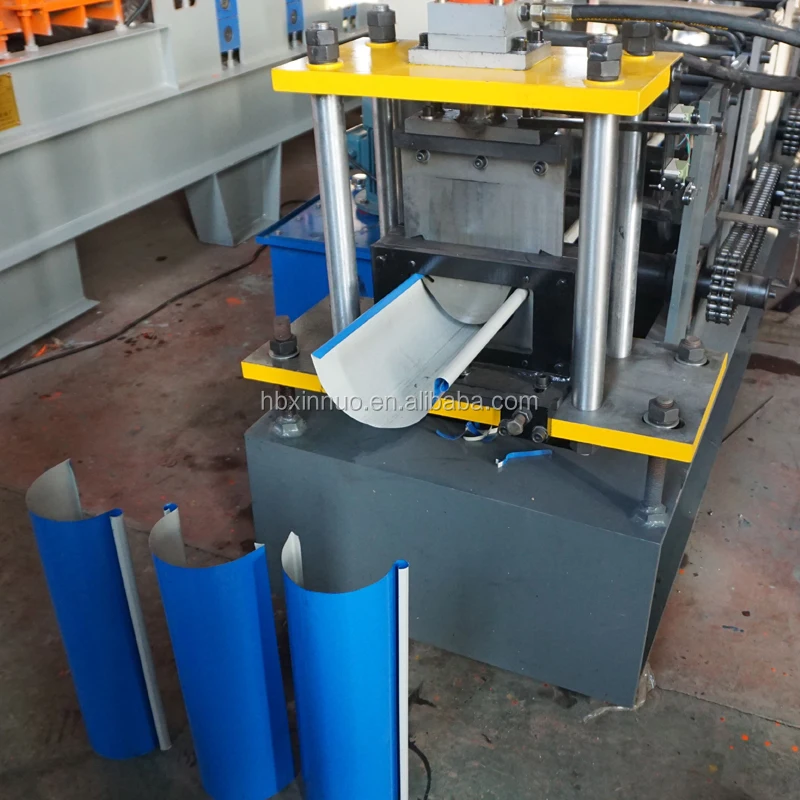

Inquire NowThe automatic round steel gutter downpipe machine is a state-of-the-art rain gutter making machine designed for high efficiency and durability. This innovative equipment utilizes cold roll forming technology to bend and shape steel plates into seamless gutter systems, significantly enhancing the aesthetic and functional integration of drainage solutions in construction projects. The machine is equipped with advanced features including an uncoiler, feed leading table, main forming unit, cutting device, hydraulic system, and a user-friendly control system, ensuring precise production with minimal waste.
Specifications
| No. | Main Parameter | Value |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 200-600mm |
| 3 | Rollers | 14-16 rows |
| 4 | Dimensions | 8.6 * 0.8 * 1.2 m |
| 5 | Power | 4 + 3 kW |
| 6 | Thickness of the plate | 0.3 – 0.8 mm |
| 7 | Productivity | 8-12 m/min |
| 8 | Diameter of the roller | 52 mm |
| 9 | Weight | About 4.5 T |
| 10 | Voltage | 380V 50Hz 3 phases |
| 11 | Rolling material | Carbon Steel 45# |
| 12 | Material of the cutting plate | Cr12 |
| 13 | Processing precision | Within 1.00 mm |
| 14 | Control system | PLC control |
| 15 | Side panel of machine | 14 mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 4.5 T |
Additional Information
Packaging Details: The main machine is nude, while the computer control box is packed with a wooden frame.
Delivery Detail: 20 days.
