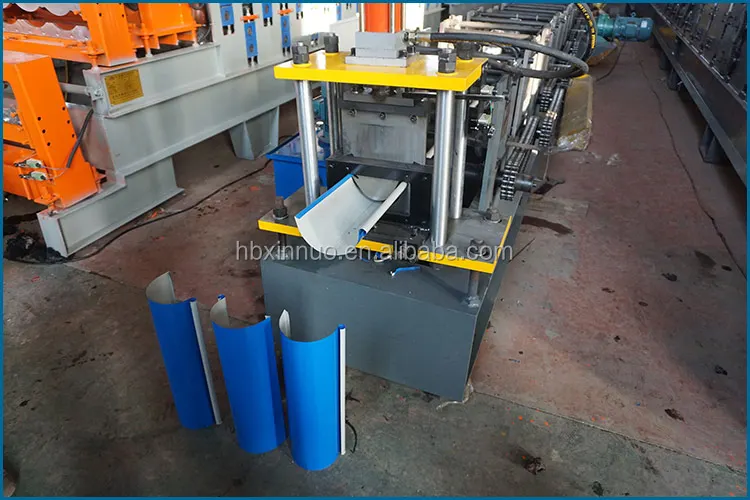

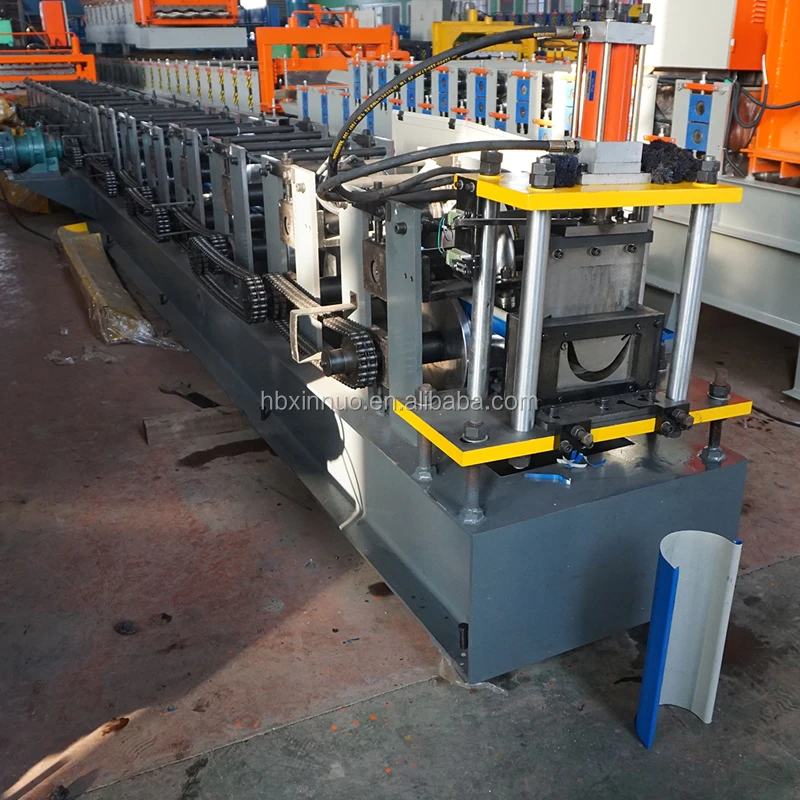

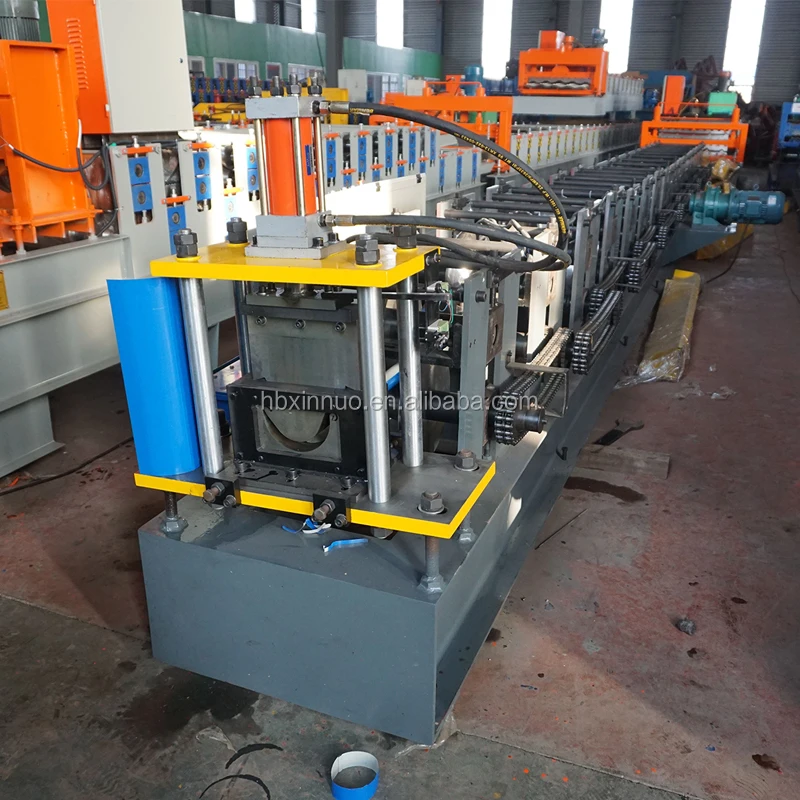

rain gutter roll forming machine
Inquire NowDescription
The rain gutter roll forming machine is an advanced piece of equipment designed for crafting high-quality rain gutters. This innovative machine utilizes cold roll forming technology to produce seamless, durable drainpipes that enhance the overall integrity and aesthetic of any construction project. Unlike traditional PVC pipes, the output from this machine boasts a longer lifespan and superior resistance to aging. The machine is composed of essential components including an uncoiler, feed leading table, main machine, formation cutting device, hydraulic system, and control system, ensuring efficient operation.
Specifications
| No. | Main Parameter of Gutter Roll Forming Machine | Details |
|---|---|---|
| 1 | Suitable to Process | Color Steel Plate |
| 2 | Width of the Plate | 200-600mm |
| 3 | Rollers | 14-16 Rows |
| 4 | Dimensions | 8.6*0.8*1.2 m |
| 5 | Power | 4+3 kW |
| 6 | Thickness of the Plate | 0.3-0.8 mm |
| 7 | Productivity | 8-12 m/min |
| 8 | Diameter of the Roller | 52 mm |
| 9 | Weight | About 4.5 T |
| 10 | Voltage | 380V 50Hz 3 Phases |
| 11 | Rolling Material | Carbon Steel 45# |
| 12 | Material of the Cutting Plate | Cr12 |
| 13 | Processing Precision | Within 1.00 mm |
| 14 | Control System | PLC Control |
| 15 | Side Panel of Machine | 14 mm |
| 16 | Main Structure of the Machine | 300 H Steel |
| 17 | Weight | About 4.5 T |
Additional Information
Packaging Details: The main machine is nude in the container, and the computer control box is packed with wooden packaging.
Delivery Detail: 20 days.
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part, but if the damaged parts are due to operating error, the buyer will pay for the shipping fee.
After-sale Service: Technicians will be sent to your country to fix the machine. The buyer should bear all costs including visa, round trip ticket, suitable accommodation, and a salary of $100.
Images
