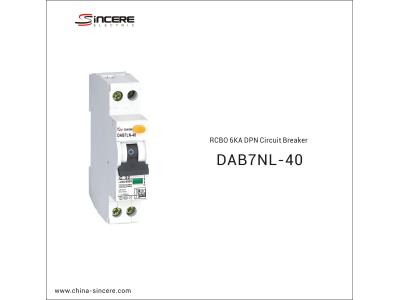

RCBO 6KA DPN Circuit Breaker
Inquire NowDescription

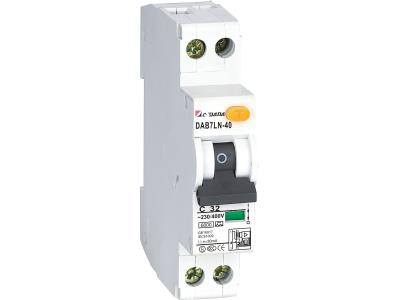

The DAB7LN-40 Series DPN Residual Current Operation Circuit Breaker (RCBO) is a compact yet powerful device engineered for high-performance electrical fault protection. With a breaking capacity of 6kA, it effectively disconnects neutral lines, ensuring safety in low-voltage electrical systems with a rated voltage of 230V and a maximum rated current of 40A. This circuit breaker is an essential safety component for safeguarding against electric shocks and overcurrent or short circuiting, while also preventing fire hazards linked to ground currents due to insulation damage.
Designed to meet IEC standards, the DAB7LN-40 features a dual-purpose terminal that accommodates both bus bars and conductors with a connection ability of 1-25mm², and a bus bar thickness of 0.8-2mm. The installation method is straightforward, utilizing a 35mm guide rail for quick setup.
Specifications
| Attribute | Details |
|---|---|
| Number of Poles | 1P+N (18mm) |
| Rated Frequency | 50-60Hz |
| Rated Operating Voltage | 230V |
| Rated Current | 40A |
| Rated Insulation Voltage | 500V |
| Impulse Withstand Voltage | 4kV |
| Instantaneous Trip Type | DAB7LN-40 B/C |
| Rated Breaking Capacity | 6 |
| Release Type | Thermo-magnetic |
Additional Information
Functions:
- Short circuit protection
- Overload protection
- Isolation capability
Technical Features:
- High-strength cartons and pallet protection, suitable for long-distance export transport.
- 100% inspection policy to ensure functional accuracy before shipment.
- ISO 9001:2008 certified.
- Capable of accommodating custom design specifications.
FAQ:
- Delivery Time: Generally 25 days after order confirmation.
- Sample Policy: Free samples available, but freight is chargeable.
- Payment Terms: 30% deposit and 70% balance against copy of BL; L/C at sight also accepted.
- OEM Capability: Available depending on order quantity.
