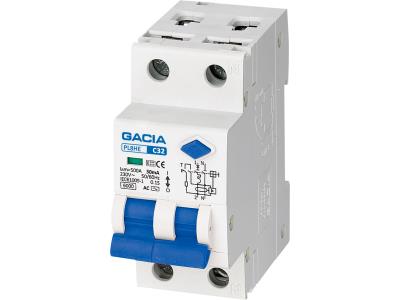

RCBO, PL8HE
Inquire NowDescription
The PL8HE Residual Current Circuit Breaker (RCBO) is designed for both domestic and industrial applications, offering a reliable solution for electrical safety. It combines a residual current device based on permanent magnet principles with a circuit breaker featuring thermal overload release and magnetic short circuit current release. This innovative design ensures voltage-independent functionality, requiring adequate voltage only during testing with the T test button. For optimal safety, it is recommended to test magnetic RCDs monthly.
Specifications
| Feature | Details |
|---|---|
| Standard Compliance | IEC/EN 61009-1 |
| Rated Breaking Capacity | Icn=6kA |
| Poles | 1P+N |
| Rated Residual Current | 30, 100, 300mA |
| Tripping Characteristics | B, C and D Type |
| Rated Current | Up to 32A |
| Rated Operational Voltage | 230V |
| Type | AC, A Type |
Additional Information
Regular testing of the RCBO is essential for maintaining safety standards, with a recommended frequency of once per month.
