Description

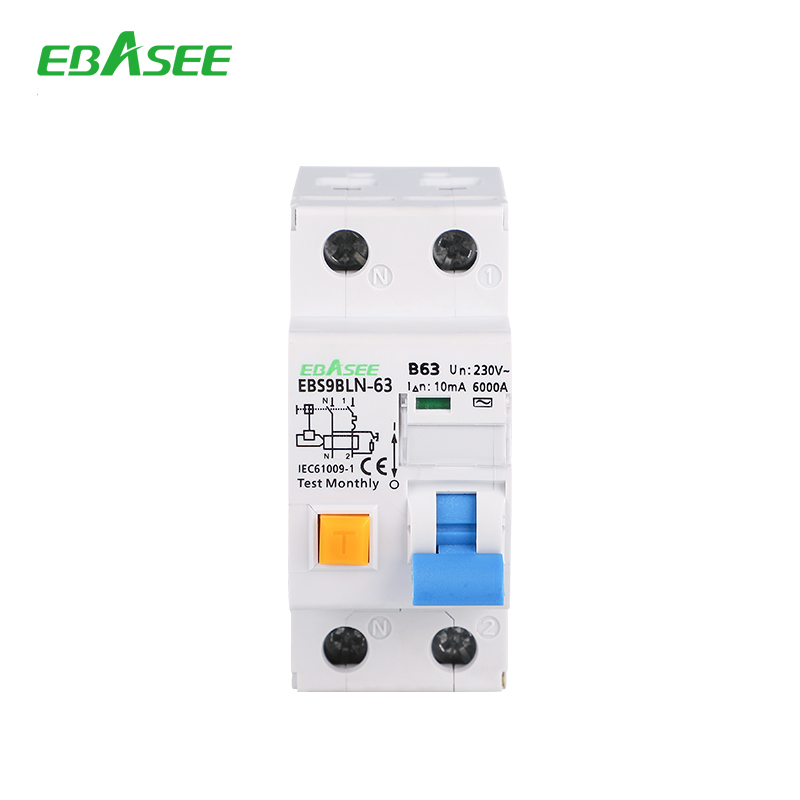

The RCBO Residual Current Circuit Breaker with Over Current Protection, model EBS9BLN-63, is a sophisticated device designed to enhance safety in electrical systems. This dual function device acts as both a residual current breaker and an over current protection device, providing essential safeguarding against electrical faults. It effectively addresses earth faults, leakage currents, short circuits, and overloads while also facilitating isolation.
Key features include:
- Protection against earth fault/leakage current, short-circuit, and over-load.
- Complementary protection against direct contact by the human body.
- Effective insulation failure protection for electrical equipment.
- Comprehensive protection for both household and commercial distribution systems.
Specifications
| Attribute | Description |
|---|---|
| Model Name | EBS9BLN-63 |
| Standard | IEC61009-1 |
| Poles | 1P+N |
| Rated Current In (A) | 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Rated Voltage Un (V) | 230V AC 50/60Hz |
| Tripping Characteristic | B, C |
| Rated Sensitive Current I△n (mA) | 30, 100, 300 |
| Residual Current Characteristics | AC, A |
| Connection Capacity | Pillar terminal with clamp |
| Installation | Installed on 35mm DIN rail |
Additional Information
Features include:
- Curve B: (3-5In) protects and controls circuits against overload and short circuits; safeguards people and cables in TN and IT systems.
- Curve C: (5-10In) protects and controls circuits against overload and short circuits; ideal for resistive and inductive loads with low inrush current.
