Description

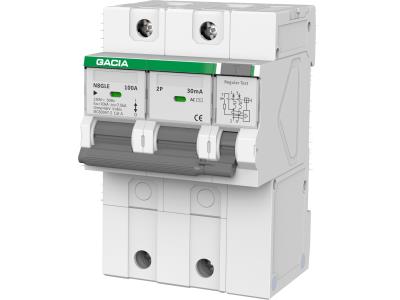

The N8GNLE Residual Current Circuit Breakers (RCBO) are engineered for both domestic and industrial applications, providing robust protection against electrical faults. These devices combine the functionality of a residual current device with a permanent magnet principle, along with a circuit breaker featuring thermal overload release and magnetic short circuit current release. This design ensures a voltage-independent operation, enhancing safety and reliability in various environments.
Specifications
| Attribute | Details |
|---|---|
| Compliance | IEC/EN 60947-2, GB/T 14048.2 |
| Rated Breaking Capacity | Icn=6kA |
| Pole Version | 1P+N, 2P, 3P, 3P+N, 4P |
| Rated Residual Current | 30mA, 100mA, 300mA |
| Tripping Characteristics | C and D Type |
| Rated Current | 1P+N/2P (63-125A), 3P/3P+N/4P (63-100A) |
| Rated Operational Voltage | 1P+N/2P (230V~), 3P/3P+N/4P (400V~) |
| Type | AC, A Type |
| Certification | CE, CCC |
Additional Information
For optimal performance, ensure that the N8GNLE RCBO is installed by a qualified electrician in accordance with local regulations and standards.
