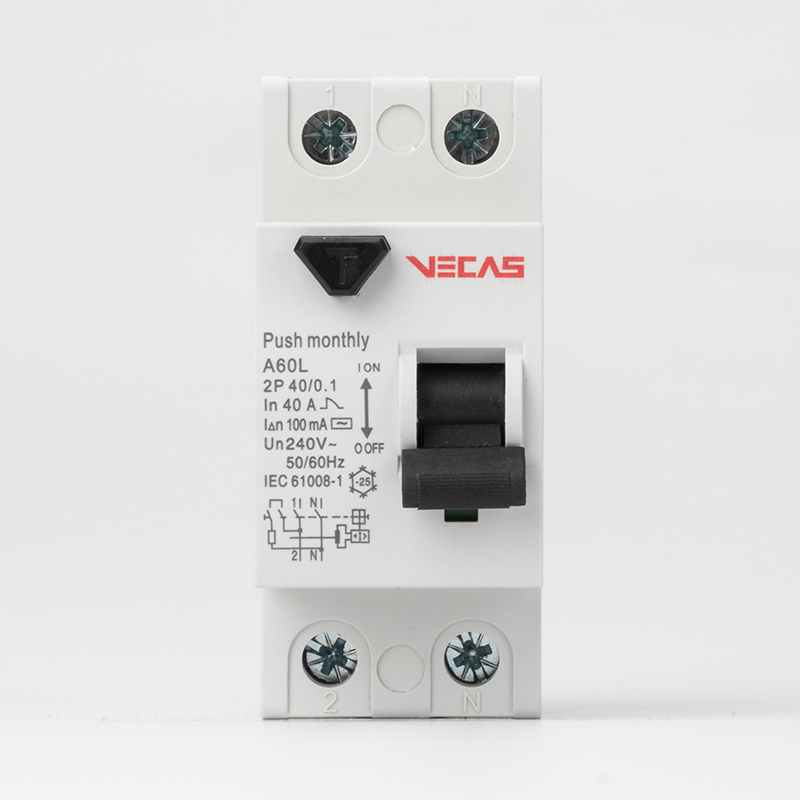

RCCB
Inquire NowDescription
The RCCB (Residual Current Circuit Breaker) is an essential safety device designed to protect against earth fault and leakage currents while providing isolation functionality. With its high breaking current withstand capacity, this device is highly reliable in preventing electrical hazards. It is compatible with terminal and pin/fork type busbar connections, ensuring versatile installation options. The RCCB features fire-resistant plastic components that can endure abnormal heating and strong impacts, making it ideal for various applications. When an earth fault or leakage current exceeds the rated sensitivity, the RCCB automatically disconnects the circuit, offering peace of mind against electrical shocks. Additionally, it operates independently of power supply and line voltage, free from external interference and voltage fluctuations.
Specifications
| Attribute | Details |
|---|---|
| Mode | Electro-magnetic type, electronic type |
| Residual current characteristics | A, AC |

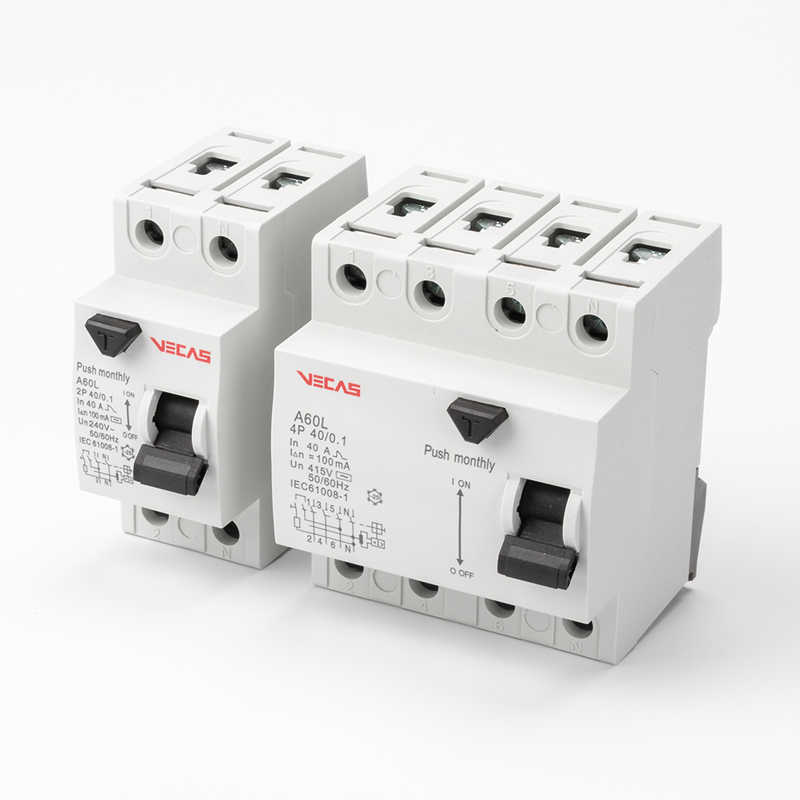

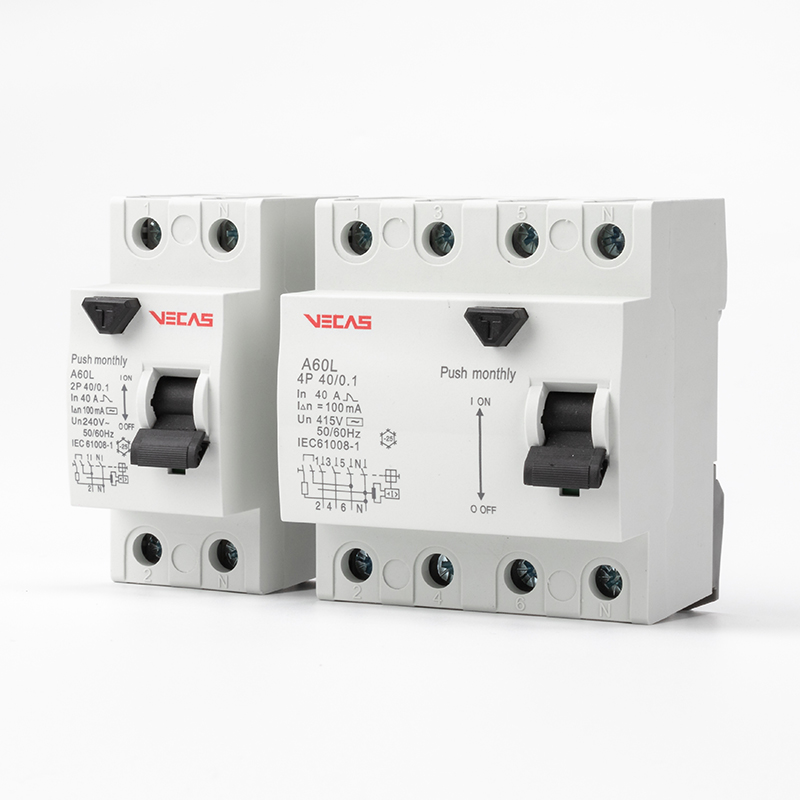

| Pole No. | 2, 4 |
| Rated making and breaking capacity | 630A |
| Rated current (A) | 25, 40, 63 |
| Rated voltage | 240/415V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current IΔn (mA) | 10, 30, 100, 300, 500 |
| Rated residual non operating current IΔno | 0.5IΔn |
| Rated conditional breaking current Inc | 3000A |
| Rated conditional residual breaking current IΔc | 3000A |
| Tripping duration | Instantaneous tripping ≤ 0.1s |
| Residual tripping current range | 0.5IΔn ~ IΔn |
| Electro-mechanical endurance | 4000 cycles |
| Connection capacity | Rigid conductor up to 25 mm² |
| Connection terminal | Screw terminal |
| Pillar terminal with clamp | |
| Fastening torque | 2.0 Nm |
| Installation | On symmetrical DIN rail 35mm |
| Panel mounting |
Additional Information
Ensure proper installation and regular maintenance for optimal performance and safety. The RCCB should be tested periodically to confirm its functionality.
