rectifier transformer
Inquire NowDescription
The ZS series rectifier transformer is a high-performance device designed for the power supply of rectifying devices. It efficiently converts AC power from the network into DC power, making it essential for various industrial applications such as electrolysis, electrochemical processes, transmission, traction, static de-dusting, DC transmission, and frequency conversion systems. Available in multiple models—dry type (ZSG, ZSC) and split oil immersed type (ZSF)—this transformer ensures reliable operation and maintenance. With a focus on safety and efficiency, it connects seamlessly to AC power on the input side and to inverters, DC devices, or thyristor converters on the output side.
Key Features:
1) Low loss
2) Low noise
3) High efficiency
4) Low partial discharge
5) Strong mechanical strength and short-circuit withstand ability
6) Reliable operation
7) Easy maintenance
8) Compact structure with an attractive outline
9) 100% guaranteed no leakage

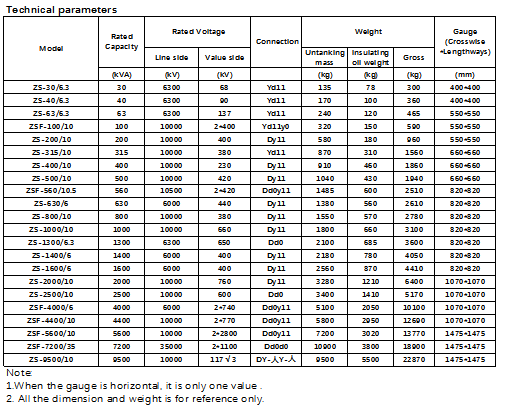

Specifications
| Attribute | Details |
|---|---|
| Model Code | ZS – □ – □ – □ / □ – □ |
| Protection Level | G-Ordinary dry type, C-Solid epoxy dry type, Non-Oil immersed, F-Pyrolysis type |
| Voltage Grade (kV) | Varies by model |
| Rated Capacity (kVA) | Varies by model |
| Structure | G-Ordinary dry type, C-Solid epoxy dry type, Non-Oil immersed, F-Pyrolysis type |
| 3-Phase Rectifier Transformer | Available |
Additional Information
No additional information available.
