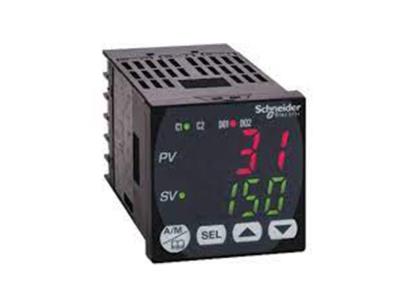

REG48-Temperature Controller 48X48
Inquire NowDescription
The REG48-Temperature Controller is a cutting-edge device designed to precisely monitor and regulate temperature within industrial, commercial, and domestic environments. This versatile controller ensures that the temperature remains within a specified range, creating a comfortable and safe atmosphere. Its user-friendly interface and robust features make it an ideal choice for controlling heating, air conditioning, and other temperature-sensitive applications.
Equipped with quick integration capabilities, the REG48 allows seamless connectivity with relays, variable speed drives, PLCs, and HMIs. The easy installation process can be accomplished through a keypad or software, and it comes with the free “Zelio control soft” software for enhanced functionality. The controller also features inbuilt Modbus communication for effortless data exchange with other automation products.
Features
- Quick integration with relays, variable speed drives, PLC, and HMI
- Easy installation with keypad or software
- Free “Zelio control soft” software available for download
- Inbuilt Modbus communication for easy data exchange
- Single cable connection with PLC and computer
- High luminous LED for clear display
- Flash memory for saving configurations
- Compatible with a wide range of sensors
- Supports PID, ramps, fuzzy logic, and auto-tuning
- IP66 certification for severe environmental conditions
Specifications
| Outer dimension | 1/16 DIN 48 x 48 mm |
|---|---|
| Analogue input type | Temperature probe Pt 100, Thermocouple J, K, R, B, S, T, E, N, PLII, Current 4…20 mA, Voltage 1…5 V, 0…20 mA, 0…10 V, 0…5 V, 2…10 V |
| [Us] rated supply voltage | 24 V AC/DC |
| Supply voltage limits | 21.6…26.4 V |
| Measurement accuracy | 0.3 % full scale |
| Sampling duration | 200 ms |
| Number of outputs | 1 solid state, 1 analog |
| Output type | Solid state 24 V DC 20 mA, Analog 4…20 mA |
| Alarm output | 2 C/O |
| Power consumption in VA | 12 VA 24 V AC/DC |
| Communication Port Protocol | Modbus |
| Method of access | Slave |
| Transmission frame | RTU |
| Physical interface | RS485 non isolated |
| Exchange mode | Half duplex |
| Transmission Rate | 9600, 19200 kbit/s |
| Function Available | Soft start, Ramp 16 steps, Manual operation, Hysteresis on-off, PID, Auto tuning, Fuzzy logic |
| Marking | CE |
| Operating position | Any position |
| Display Type | 7 segments LCD |
| Display digits | 4 |
| Signalling function | Setpoint value indicator (SV) LED Green, Process output 1 active (C1) LED Red, Process output 2 active (C2) LED Red, Process value indicator (PV) LED Red, Process value LCD display, Setpoint value LCD display, Alarm output 1 active (D01) LED, Alarm output 2 active (D02) LED |
| Mounting Support | Panel |
| Standards | EN 61326-1, CSA C22.2 No 24-93, EN 61010-1 |
|---|---|
| Product Certifications | GOST, cURus (873) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Ambient Air Temperature for Operation | 14…122 °F (-10…50 °C) |
| Relative Humidity | 90 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 1 gn 10…70 Hz)IEC 60068-2-6 |
| Shock resistance | 5 gn IEC 60068-2-27 |
| IP degree of protection | IP66 IEC 60529 front face, IP20 rear |
| NEMA degree of protection | NEMA 4X front face |
| Category | 22380-RELAYS-MEASUREMENT (RM17-RM35) |
|---|---|
| Discount Schedule | CP2 |
| GTIN | 00785901918387 |
| Returnability | No |
| Country of origin | JP |
| Warranty | 18 months |
|---|
