Relay
Inquire NowRelay

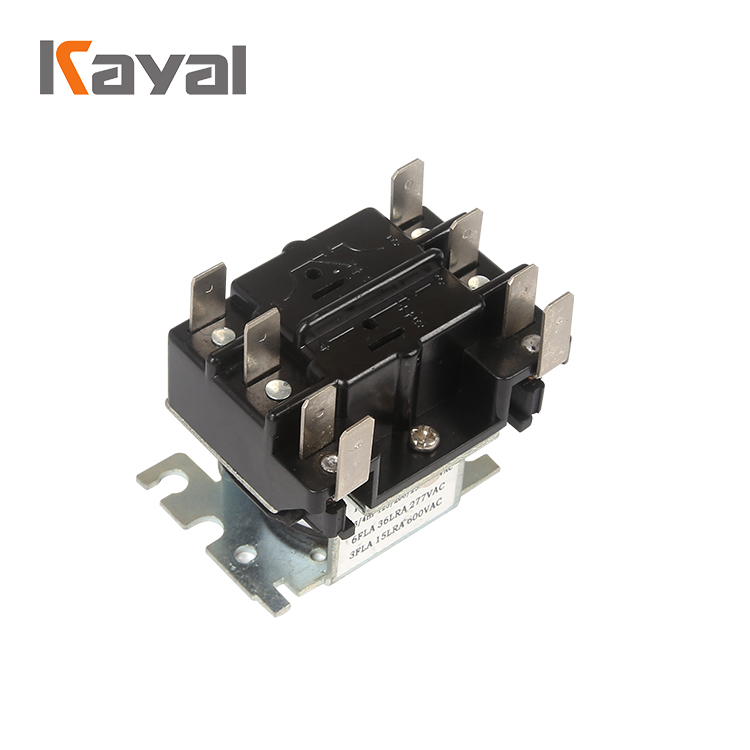

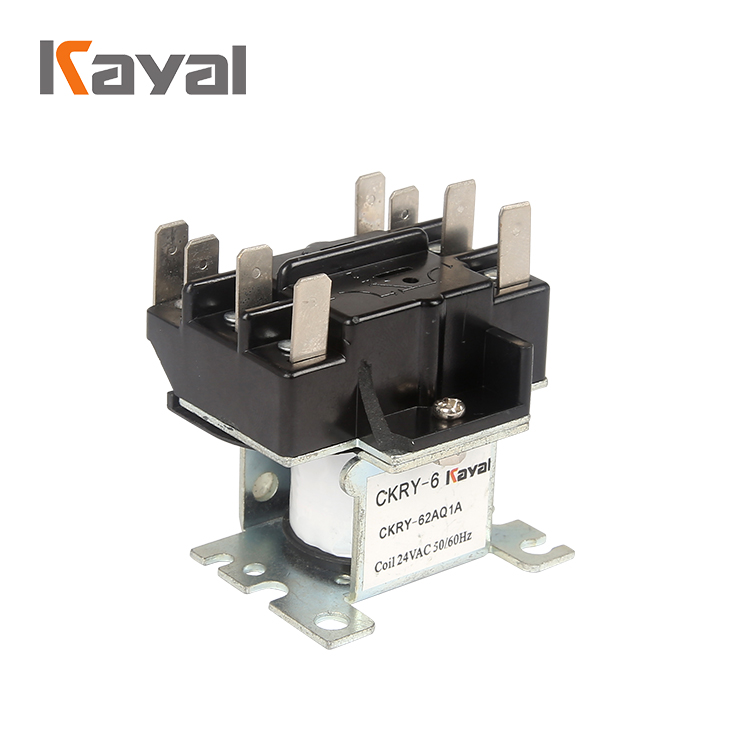

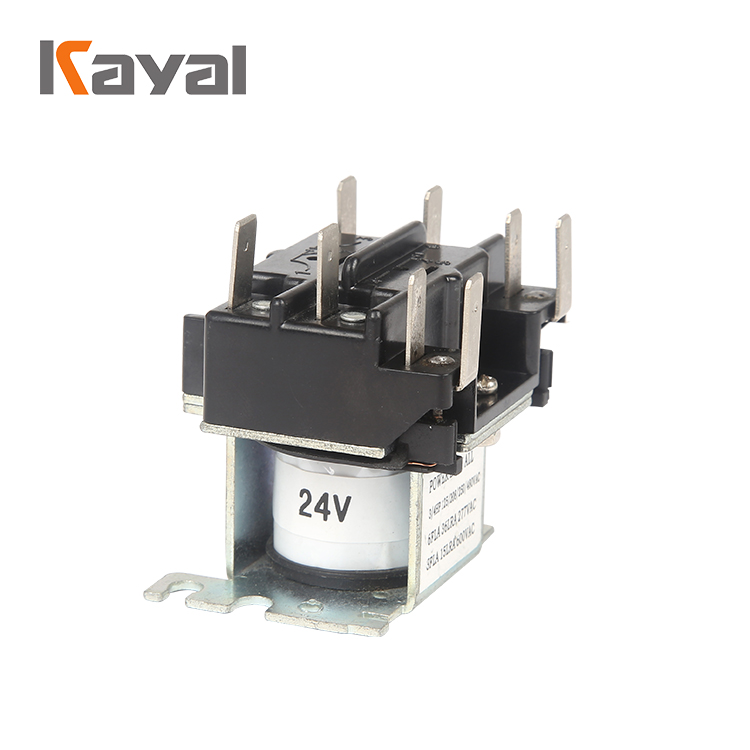

General Purpose Switching Relay
1.SPNO,SPDT,DPNP&SPDT switching configurations
2.Class B insulation system
3.250″ QC terminals
4.Multi-positional mounting
Partial Listing of Available CKYR-6 Relays
| Coil Voltage | 24VAC | 120VAC | 208/240VAC |
| SPNO | CKYR-61AQ1A | CKYR-61AT1A | CKYR-61AU1A |
| SPDT | CKYR-61CQ1A | CKYR-61CT1A | CKYR-61CU1A |
| DPNO | CKYR-62AQ1A | CKYR-62AT1A | CKYR-62AU1A |
| DPDT | CKYR-62CQ1A | CKYR-62CT1A | CKYR-62CU1A |
Nomenclature
| CKYR-6 | – | 6 | 2A | Q | 1 | A | 0 |
| Series | Packaging | Relay Type | Pole Form | Coil Voltage | Contact Rating | Mounting |
Customer Identification |
| Relay | – Factory Bulk Box | 6 | 2A DPNO | Q 24VAC | 1 Power Rated | A-Bracket | |
| – Individual Pack Box | 2C DPDT | T 120VAC | 2 Pilot Duty |
Mounting with 250″QC |
|||
| 1C SPDT | U 208/240 VAC | ||||||
| 1A SPNO | V 277VAC |
Contact Data
| Arrangement | SPNO,SPDT,1NO&1NC |
| Contact Material | Silver Cadmium Oxide Alloy |
| Power Rating | 12FLA 60 LRA |
| 18 Amps Resistive @ 125VAC 8FLA 48 LRA | |
| 18 Amps Resistive @ 240/277 AC | |
| SPST-NO only Pilot Duty Rating | 25 Amps Resistive @ 277VAC |
| 3Amps,277VAC | |
| 125VA @ 125VAC | |
| 250VA @ 250VAC | |
| 277VA @ 277VAC | |
| Temperature Range | -55 to +125℃ |
| Unit Weight | 0.086kg |
| Power Pole Termiinations | 250″ QC |
| Coil Termination | 250″ QC |
| Mechanical Life Expectancy |
