Ridge cap roll forming machine

Inquire Now

Description

The Ridge Cap Roll Forming Machine is designed for efficient production of ridge caps, a crucial element in roofing systems. This robust and versatile machine features a comprehensive setup that includes a manual coiler, adjustable input equipment, and a main roll forming machine crafted with a durable chromed plate. With a hydraulic cutting system, hydraulic station, and advanced PLC control system, it ensures precision and reliability in every operation. This machine is capable of working with various materials, including PPGI, GI, and aluminum, making it adaptable for different production needs.

Specifications

Attribute Details
Matching Material PPGI, GI, Aluminium
Material Thickness 0.2 – 0.8 mm
Power 5.5 kW
Forming Speed 6 – 8 m/min
Width of Plates According to drawings
Input Leveling Equipment Adjustable
Roll Stations 13
Shaft Material and Diameter 45# Steel, ￠75 mm
Tolerance 10 m ±1.5 mm
Way of Drive Chain Driven
Controlling System PLC
Voltage Dependent on client
Material of Forming Rollers 45# Steel, Heat Treatment, and Chromed
Side Plate Steel Plate with Chromed
Size Length: 7.9 m, Width: 1.45 m, Height: 1.55 m
Weight 5.5 tons

Additional Information

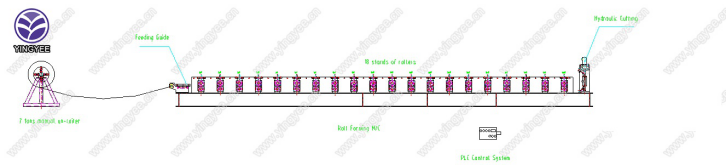

  • Components Included:
    • Manual Coiler x1 set
    • Adjustable Input Equipment x1 set
    • Main Roll Forming Machine with Chromed Plate x1 set
    • Hydraulic Cutting System x1 set
    • Hydraulic Station x1 set
    • PLC Control System x1 set
