Description

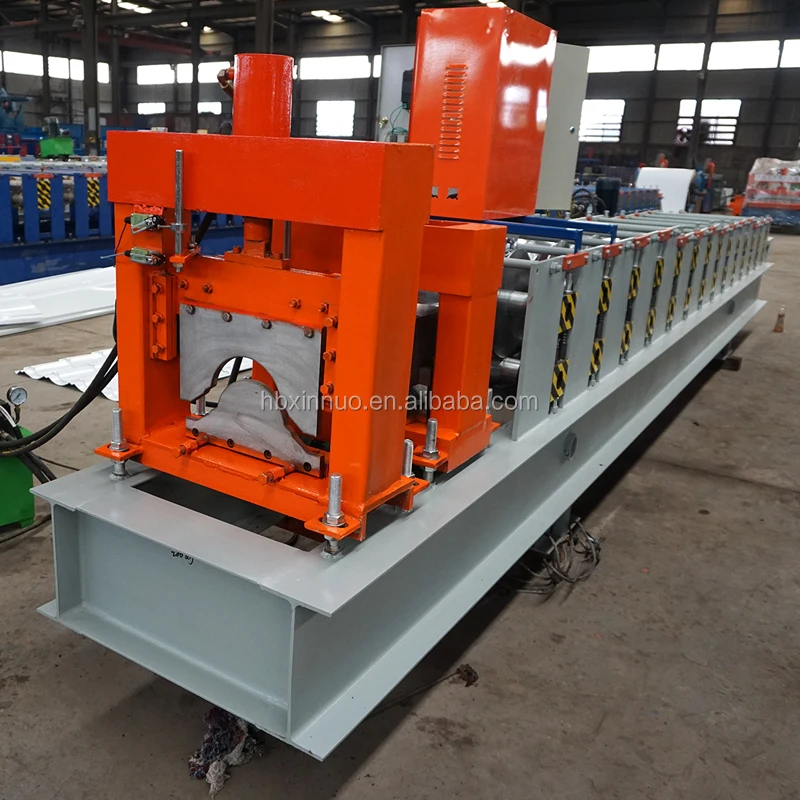

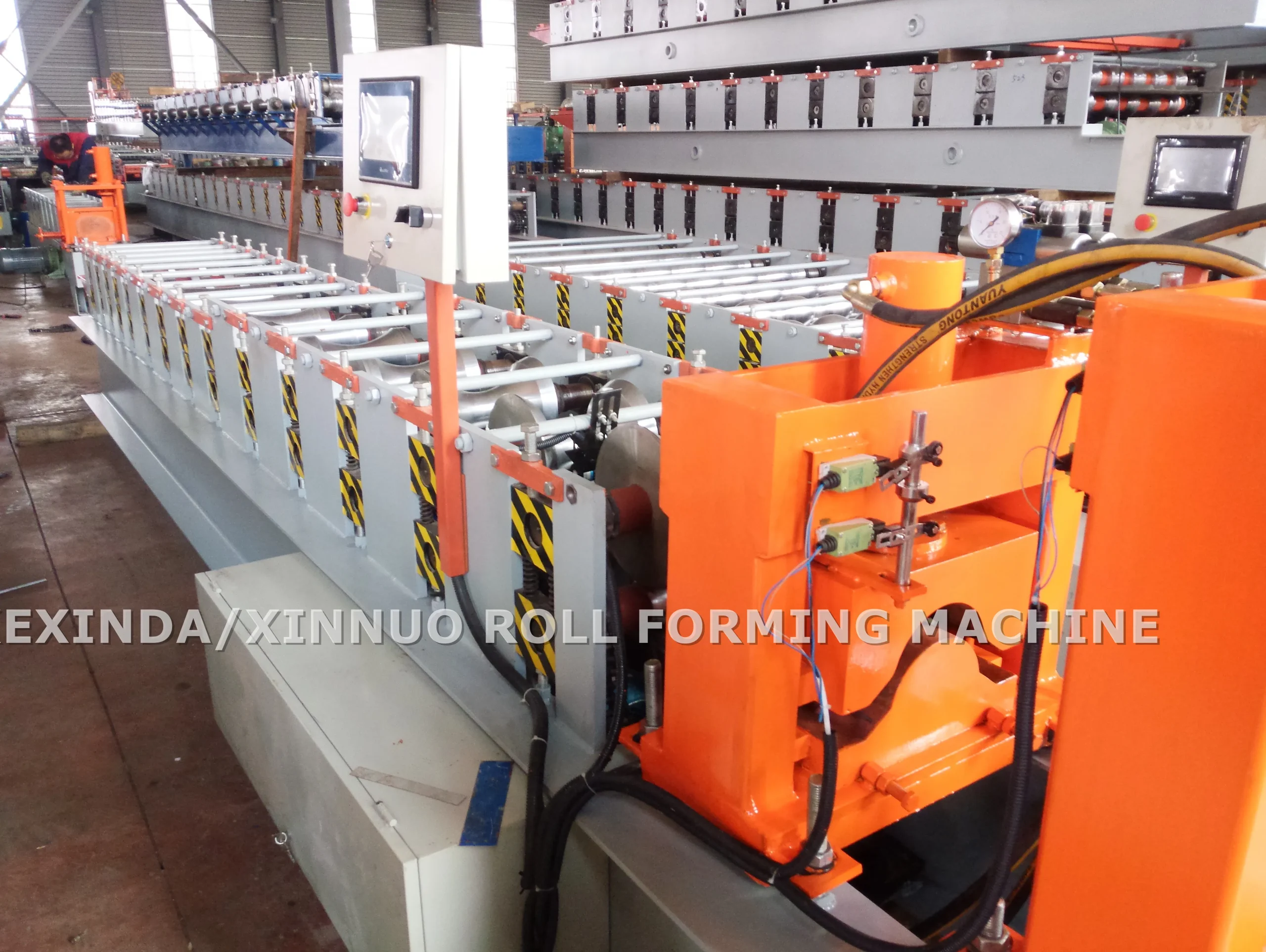

The ridge machine supply roof roll forming machine is an innovative solution designed for the efficient production of iron sheets. This machine is capable of processing color steel plates, providing an essential tool for manufacturers in the construction and roofing industry. With its advanced technology and robust construction, it ensures high precision and durability, making it ideal for both small and large-scale operations.
Specifications
| No. | Feature | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | Based on the profile |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | De-coiler | Manual one, can load 3 tons |
| 5 | Rollers for forming | 14 rows |
| 6 | Diameter of the roller | 70mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 8-12m/min |
| 10 | Cutting method | Hydraulic mould cutting |
Additional Information
For optimal performance, ensure regular maintenance is performed on the ridge machine supply roof roll forming machine. Proper care will extend its longevity and efficiency in production.
Images
