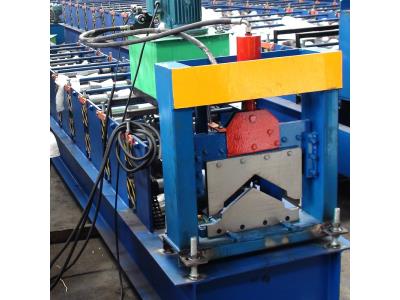

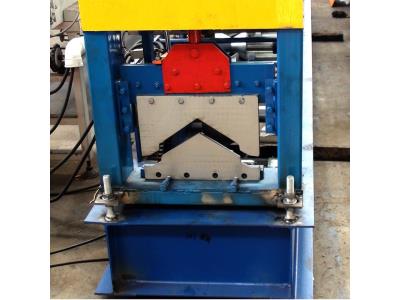

ridge making machine iron sheet making machine sheet forming roll machine
Inquire Now#### **Description**
The ridge making machine is an advanced solution designed for manufacturing iron sheet products, specializing in the formation of sheet metal profiles. This innovative sheet forming roll machine is engineered to efficiently process color steel plates, providing exceptional versatility in the metalworking industry. With its robust construction and state-of-the-art technology, it ensures precision and durability, making it an essential tool for any fabrication workshop. The machine features a manual de-coiler that can support up to 3 tons, allowing for smooth operation and easy handling of materials.
#### **Specifications**
| No. | Main Parameter | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | Based on the profile |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | De-coiler | Manual one, can load 3 tons |
| 5 | Rollers for forming | 14 rows |
| 6 | Diameter of the roller | 70mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 8-12m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12mov |
| 12 | Hydraulic cutting power | 3kw |
#### **Additional Information**
This ridge making machine is perfect for businesses looking to enhance their metalworking capabilities. It is designed for ease of use, ensuring that even those with minimal experience can operate it effectively. Regular maintenance and proper handling will extend the life of the machine and maintain its performance.
