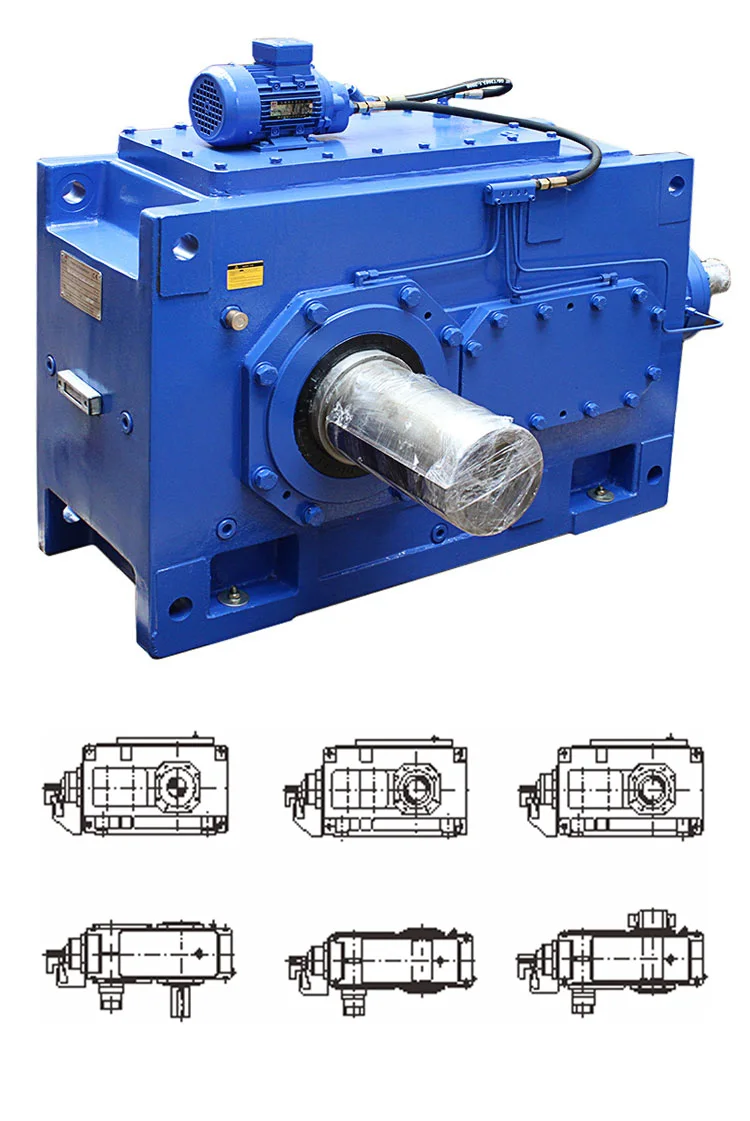

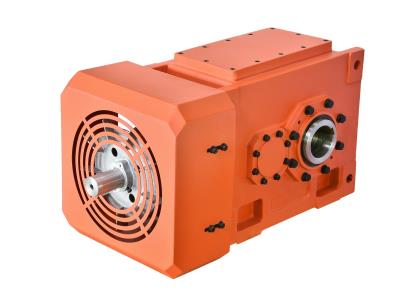

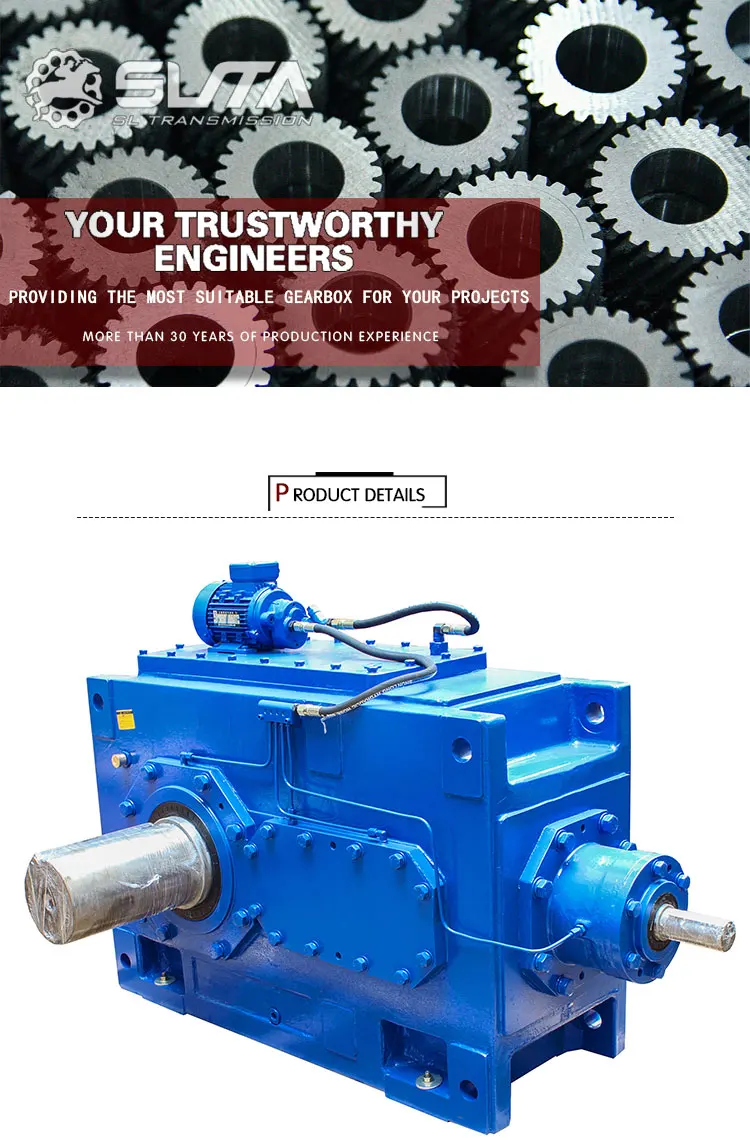

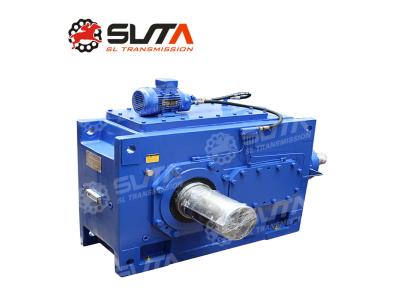

Right angle shaft heavy duty helical bevel gearbox for wood pellet machine
Inquire NowDescription
The Right Angle Shaft Heavy Duty Helical Bevel Gearbox is designed specifically for wood pellet machines, ensuring robust performance and reliability. This gearbox is engineered to withstand demanding industrial applications, including chemical, oil, and mining sectors, providing efficient transmission solutions. The BC series gearbox combines high-strength materials with precision engineering to deliver optimal torque and durability.
Specifications
| Attribute | Details |
|---|---|
| Applications | Industry, chemical, oil, mine, and all transmission solutions! |

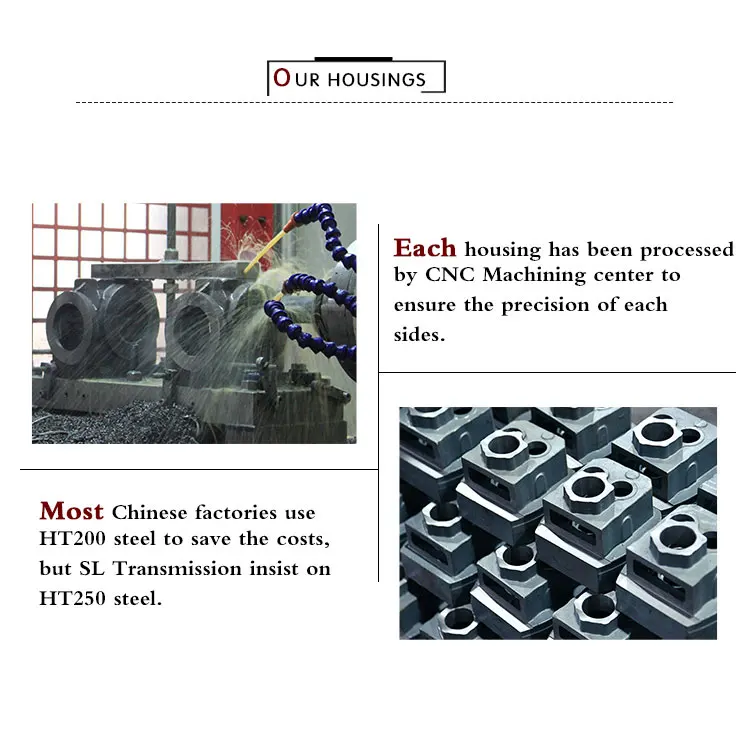

| Housing Material | HT250 high-strength cast iron |
| Housing Hardness | HBS190-240 |
| Gear Material | 20CrMnTi alloy steel |
| Surface Hardness of Gears | HRC58°~62° |
| Gear Core Hardness | HRC33~40 |
| Input / Output Shaft Material | 42CrMo alloy steel |
| Input / Output Shaft Hardness | HRC25~30 |

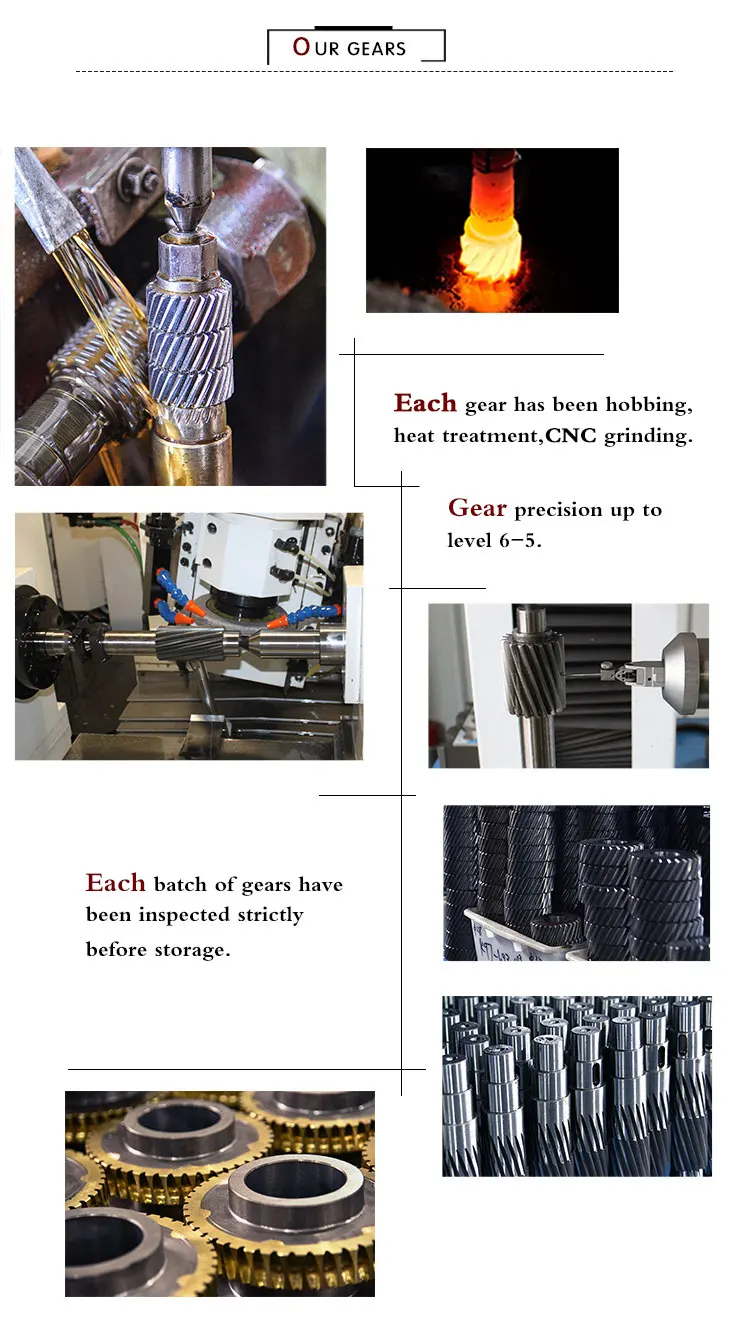

| Machining Precision of Gears | Accurate grinding, 6~5 Grade |
| Lubricating Oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat Treatment | Tempering, cementing, quenching, etc. |
| Efficiency | 94% |
| Noise (MAX) | 60~68dB |
| Temperature Rise (MAX) | 40℃ |
| Temperature Rise (Oil) (MAX) | 50℃ |
| Vibration | ≤20μm |
| Backlash | ≤20 Arcmin |
| Brand of Bearings | China Top brand HRB, LYC, ZWZ or other brands requested, NSK… |
| Brand of Oil Seal | NAK—Taiwan or other brands requested |
Additional Information
- Please ensure proper lubrication for optimal performance.
- Recommended maintenance schedule to prolong gearbox life.
