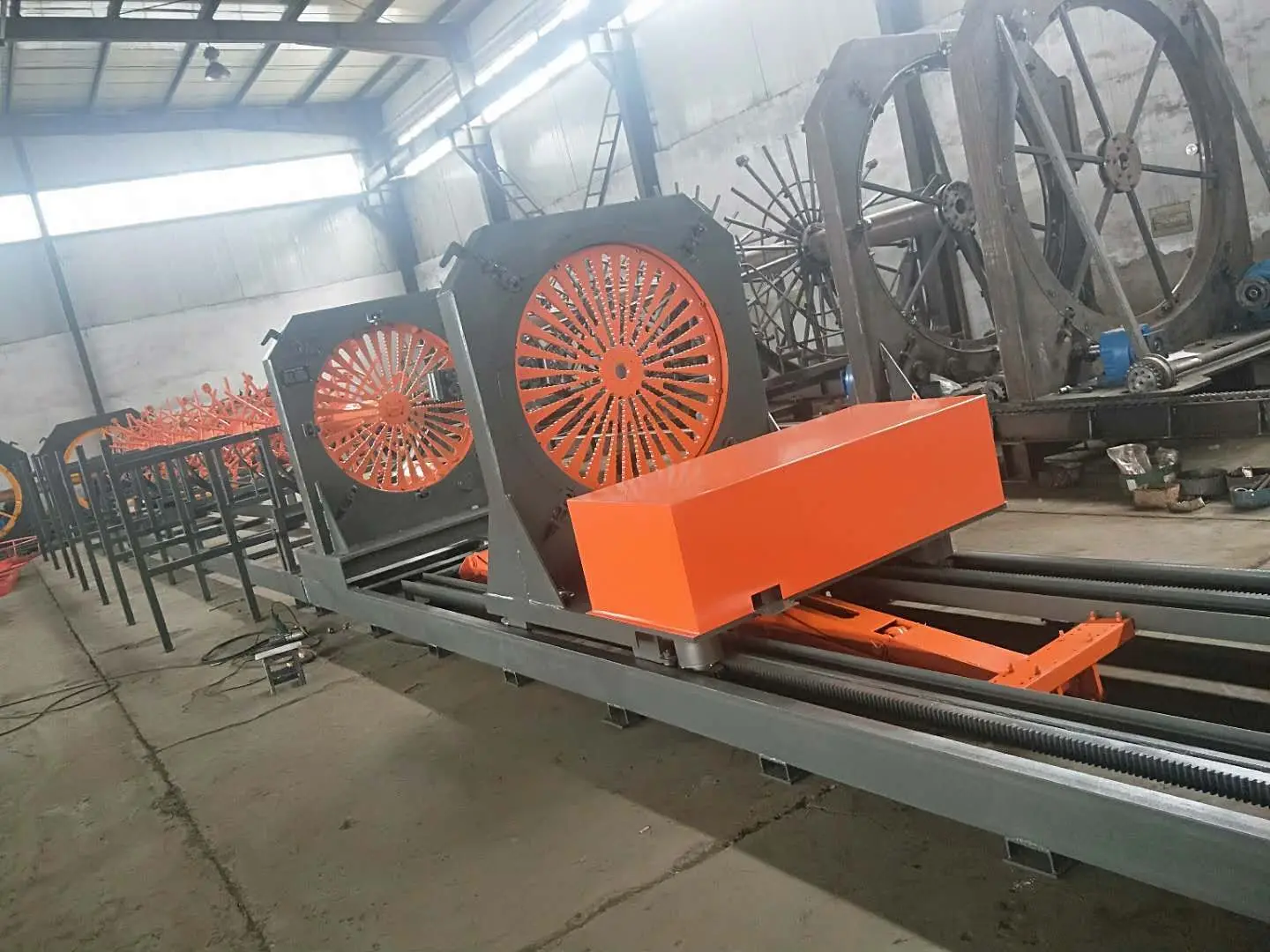

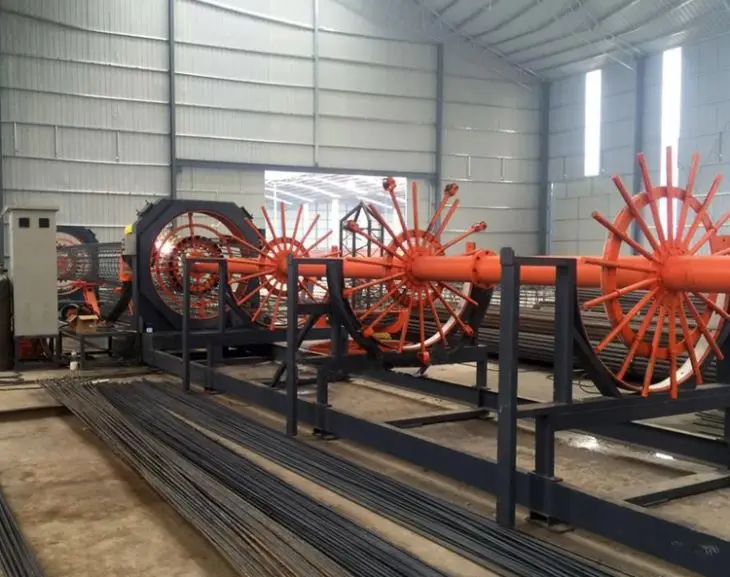

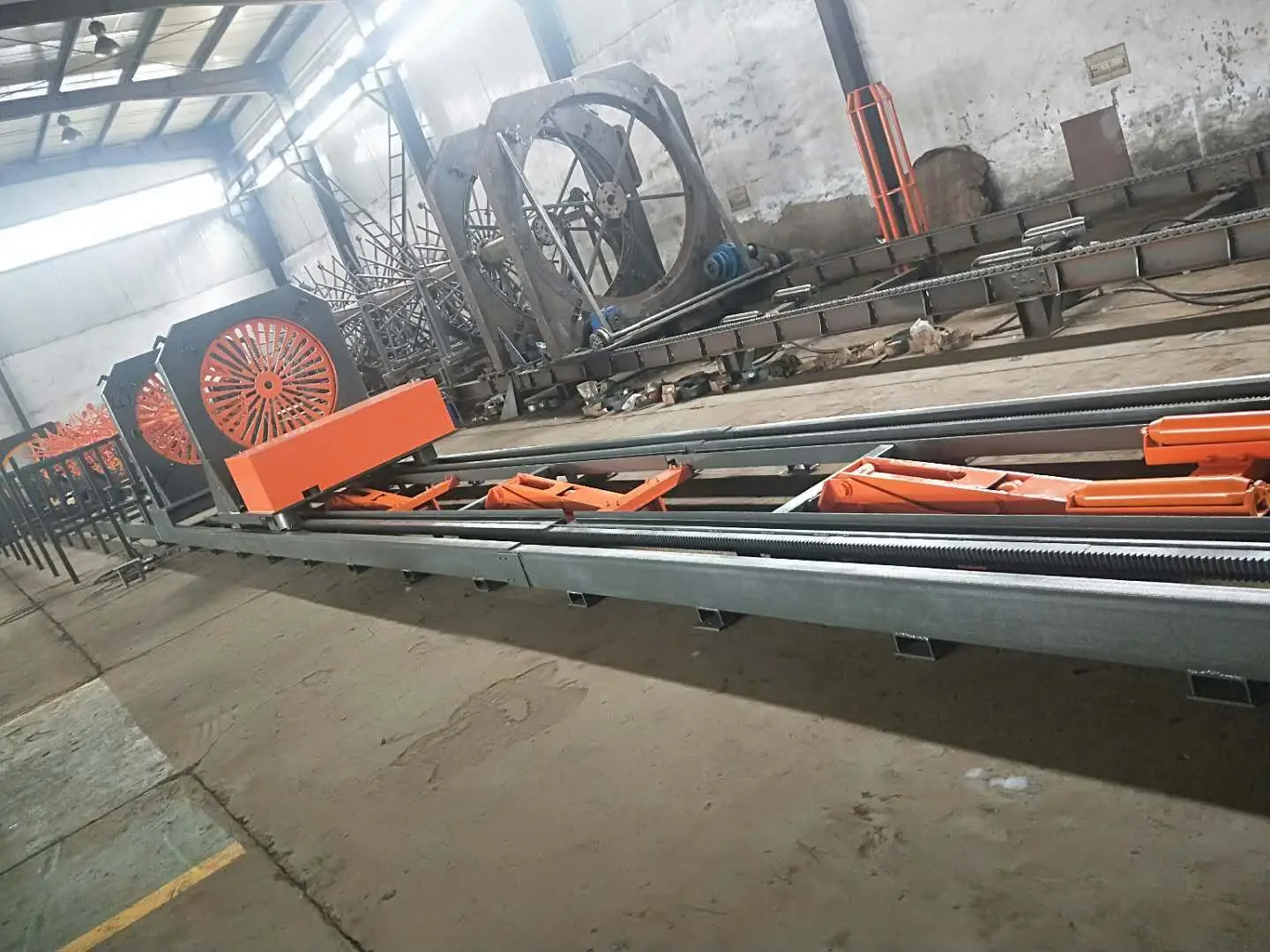

Roller Cage Welding Machine
Inquire Now#### **Description**
The Roller Cage Welding Machine is an advanced piece of equipment designed for efficiency in construction projects. Primarily utilized in railway construction, under-bridge projects, highways, and high-speed rail systems, this machine excels in creating robust rebar cages essential for various structural applications. Its intelligent design makes it the most suitable choice for construction sites and prefabricated factories, ensuring precision and reliability in rebar processing.
#### **Specifications**
| Attribute | Model 1000 | Model 1500 | Model 2000 | Model 2500 |
|---|---|---|---|---|
| Cage Diameter | Φ300-1000mm | Φ500-1500mm | Φ600-2000mm | Φ900-2500mm |
| Cage Length | Custom-made | Custom-made | Custom-made | Custom-made |
| Main Bar Diameter | Φ12-32mm | Φ12-32mm | Φ12-40mm | Φ12-50mm |
| Spiral Diameter | Φ6-13mm | Φ6-13mm | Φ6-16mm | Φ6-16mm |
| Spiral Distance | 50-500mm adjustable | 50-500mm adjustable | 50-500mm adjustable | 50-500mm adjustable |
| Hydraulic Pump Station Pressure | 10MPa | 10MPa | 10MPa | 10MPa |
| Maximum Weight of Cage | 4500kgs | 4500kgs | 4500kgs | 4500kgs |
#### **Additional Information**
For optimal performance, ensure regular maintenance of the hydraulic system and keep the machine clean to prevent any debris from affecting its operation.
