rolling door motor
Inquire NowDescription

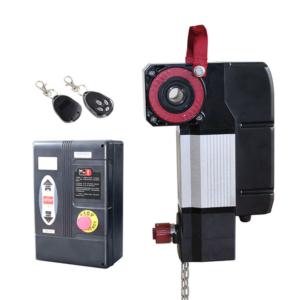

The Automatic Electric Roller Shutter Motor is an innovative solution designed for efficient operation of rolling doors. With over 20 years of expertise in shutter motor production, our company is committed to delivering high-quality, silent operation tailored for both residential and commercial applications. This motor features a powerful drive mechanism, ensuring smooth opening and closing of rolling shutters while prioritizing safety and reliability. The integrated limit switch unit allows for precise adjustment of the door’s position, making it ideal for varied installations.
Key Features:
- Power-driven operation for effortless opening and closing of rolling shutters.
- Limiting switch unit for accurate positioning of the door.
- Manual operation through a release chain in case of power failure.
- Overheat protection mechanism to prevent damage during overload.
- Capacitance automatic discharge device for enhanced safety during maintenance.
- Low noise, minimal power consumption, and easy installation.
Specifications
| Part No. | Component | Part No. | Component |
|---|---|---|---|
| 1 | Electric control box | 8 | Reduction gear box |
| 2 | Clutch lever | 9 | Bracket |
| 3 | Clutch drive | 10 | Shaft block |
| 4 | Motor | 11 | Flange |
| 5 | Limit stop | 12 | Side bracket |
| 6 | Manual chain | 13 | Madrel |
| 7 | Manual button |
| Model | Max. Lifting Force (kg.f) | Max. Elevating Distance (m) | Power (w) | Rated Current (A) | Output Torque (N.m) | Output Turn Speed (r/min) | Chain |
|---|---|---|---|---|---|---|---|
| MN(Z)-1P-150 | 150 | 5 | 220 | 1.2 | 105 | 5 | 08B |
| MN(Z)-1P-300 | 300 | 6 | 400 | 2.4 | 210 | 5 | 08B |
| MN(Z)-1P-500 | 500 | 6 | 480 | 2.6 | 350 | 5 | 10A |
Additional Information
When installing the Automatic Electric Roller Shutter Motor, ensure proper alignment and secure mounting to enhance performance. Regular maintenance checks are recommended to ensure longevity and optimal functioning of the motor. In the event of a malfunction, refer to the manual for troubleshooting steps.
