PILLOW BLOCK, ALSO KNOWN AS PLUMMER BLOCK] OR BEARING HOUSING, IS A PEDESTAL USED TO PROVIDE SUPPORT FOR A ROTATING SHAFT WITH THE HELP OF COMPATIBLE BEARINGS & VARIOUS ACCESSORIES. HOUSING MATERIAL FOR A PILLOW BLOCK IS TYPICALLY MADE OF CAST IRON OR CAST STEEL.
PILLOW BLOCK BEARINGS ARE COMPOSED OF A SINGLE ROW DEEP GROOVE BALL BEARINGS WITH SEALS AT BOTH SIDES AND SPHERICAL OUTSIDE SURFACE, AND A HOUSING, SUITABLE FOR SIMPLE SUPPORT.
PILLOW BLOCKS ARE FOR MECHANICAL EQUIPMENT, LIKE AGRICALTURAL, METALLURGICAL, TEXTILE AND PRINTING MACHINERY.

PRODUCT DESCRIPTION

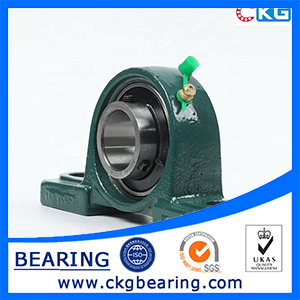

PRODUCT NAME: PILLOW BLOCK, BEARING UNIT

PRODUCT BRAND: CKG

BEARING ITEMS: UCP200 UCPX00 UCP300 UCF204 UCF206 UCF208

PRODUCT PACKING: PLASTIC BAG + INDIVIDUAL COLOR BOX + CARTON + PALLET

INSERT BEARING: UC200, UCX00, UC300, SA200, SB200, UK200, HC200, SER200

BEARING MATERIAL: CHROME STEEL (GCR15)

HOUSING MATERIAL: CAST IRON (HT200), STAINLESS STEEL, PLASTIC RESIN, ZINC ALLOY, PRESSED STEEL

STEEL NO. C(%) SI(%) MN(%) S(%) P(%) CR(%)

GCR15 0.95-1.05 0.15-0.35 0.20-0.40 ≤ 0.020 ≤ 0.027 1.30-1.65

Specification
