sandwich panel form rolling machine
Inquire NowDescription
The Z-lock sandwich panel form rolling machine is an advanced iron forming machine designed for the production of metal roofing and sandwich panels. This automatic machine is capable of handling various materials including EPS, rock wool, and glass silk floss, making it versatile for different construction needs. It features a PLC control system for easy operation and high precision, ensuring stable performance during operation. The machine is engineered for efficiency, with a production capacity ranging from 2 to 4.5 meters per minute, depending on the adhesive used.
This robust machine has a total power of approximately 30KW and a weight of 25 tons, making it a reliable choice for heavy-duty applications. The dimensions of the entire production line are approximately 35,000 mm in length, 2,500 mm in width, and 2,600 mm in height.
Specifications
| Feature | Details |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 2 – 4.5 m/min |
| Total Power | About 30 KW |
| Weight | 25 tons |
| Dimensions | Length: 35000 mm × Width: 2500 mm × Height: 2600 mm |
Additional Information
Processing Technique: The machine operates through a series of processes including Composite Decoiler, Roll Forming, Laminating System (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer), Cutting System, and Runout Table.
Terms of Payment: 30% of the total contract value paid by T/T as down payment, with the remaining 70% to be paid after inspection in the seller’s factory before delivery.
Delivery: 60 days after receipt of advance payment.
Service: Technician will be sent to assist with installation; costs for travel and accommodation are to be covered by the buyer.
Warranty: 12 months limited warranty, with free parts during the warranty period (shipping fees apply).
Note: The manufacturer can design machines according to specific drawings, and all plate types can be customized as per requirements.

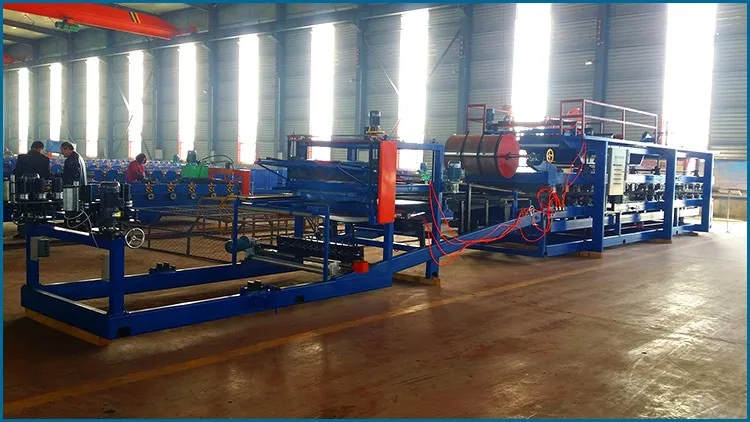

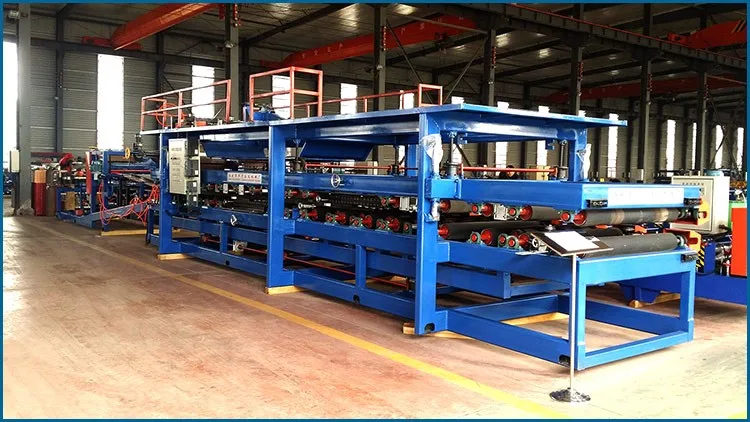

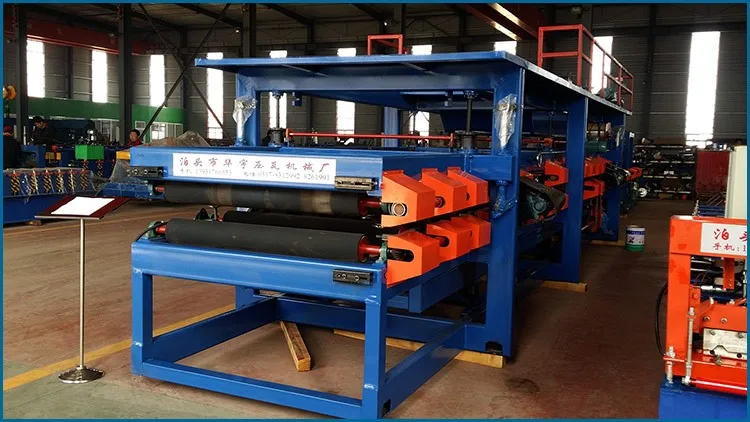

Product Pictures
