sandwich panel making machine roll forming machine for sheet metal profiles
Inquire NowDescription

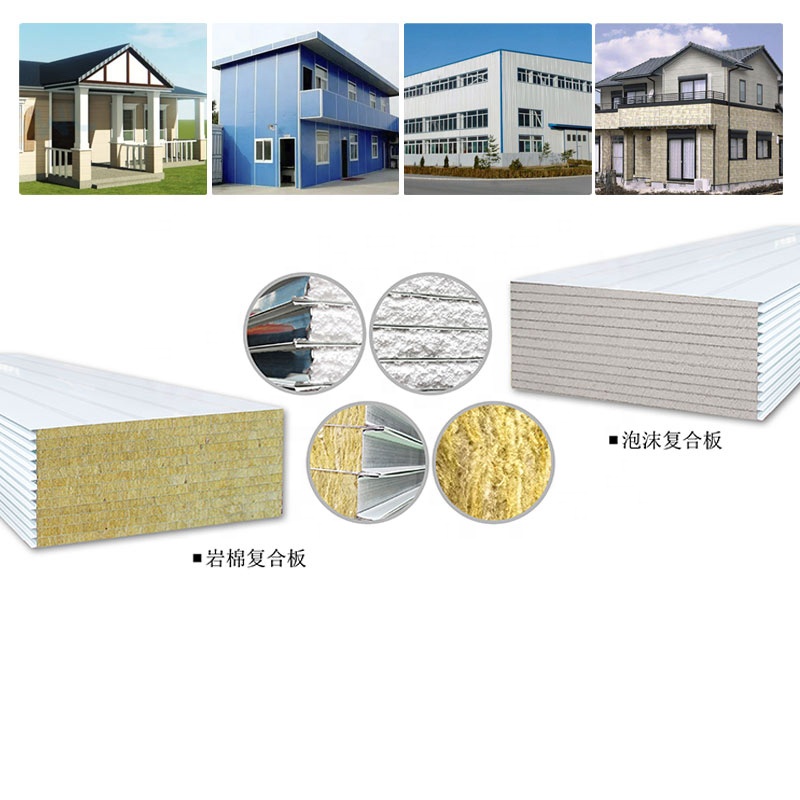

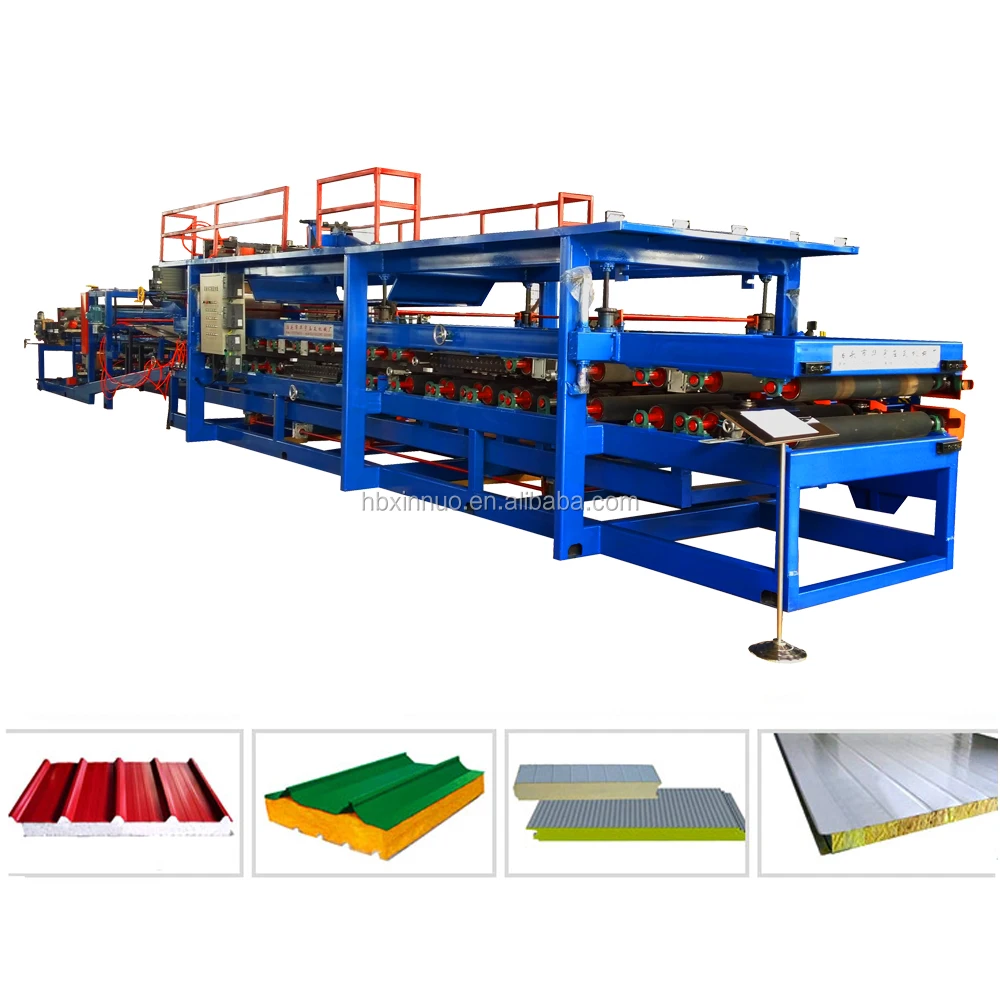

The sandwich panel production machine line is designed for high-efficiency iron sheet rolling, specializing in roofing sheet forming machinery. This advanced equipment, known as the Xinnuo automatic EPS sandwich roof and wall panel roll forming machine, is engineered to produce various sandwich panels using materials such as EPS, rock wool, and glass silk floss. It boasts a robust construction with a PLC control system for easy operation, ensuring high precision and stable performance.
With a production capacity that can reach between 2 to 4.5 meters per minute depending on the adhesive used, this machine is capable of handling sheet thicknesses from 0.3 to 0.8mm and core thicknesses ranging from 20 to 300mm. Its total power consumption is approximately 30KW, and the machine weighs around 25 tons, making it a substantial addition to any production facility.
Specifications
| Attribute | Details |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 2 – 4.5 m/min |
| Total Power | About 30 KW |
| Weight | 25 tons |
| Dimensions | Length 35000 mm × Width 2500 mm × Height 2600 mm |
Additional Information
Processing Technique: The production process includes a composite decoiler, roll forming, laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer), cutting system, and runout table.
Terms of Payment: 30% of the total contract value paid by T/T as down payment, with the remaining 70% due after inspection by the buyer in the seller’s factory before delivery.
Delivery: 60 days after receipt of advance payment.
Service: Technicians can be sent to your location for machine setup; buyer covers the costs including visa, roundtrip tickets, accommodation, and a daily salary of $60.
Warranty: 12 months limited warranty; parts are free during warranty, but the buyer pays shipping fees.
Note: Custom machine designs and plate types can be accommodated based on specific requirements.
Product Pictures
