sandwich panel making machine roll forming machine for sheet metal profiles
Inquire NowDescription

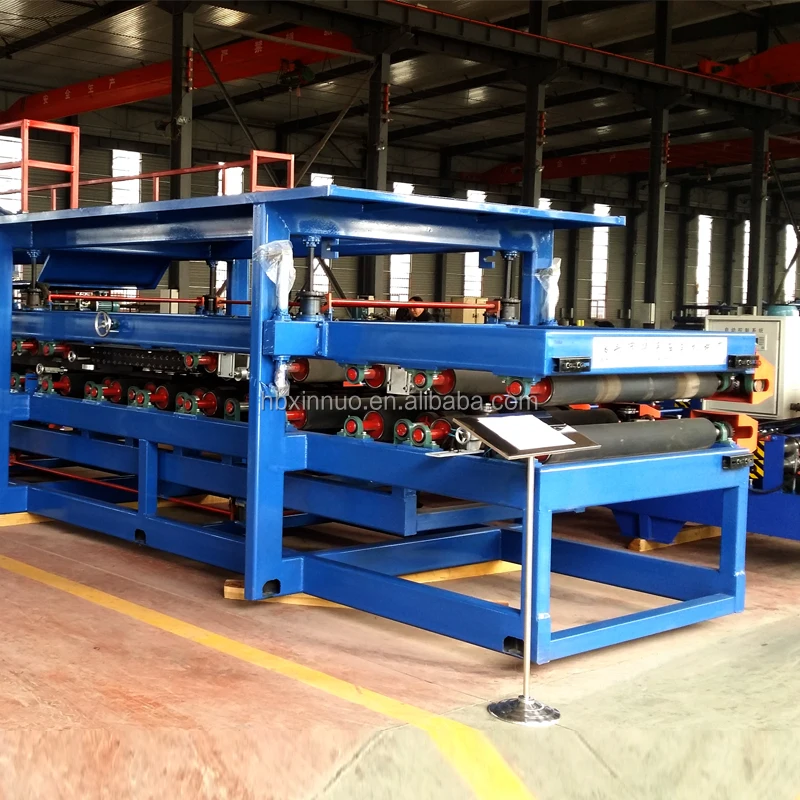

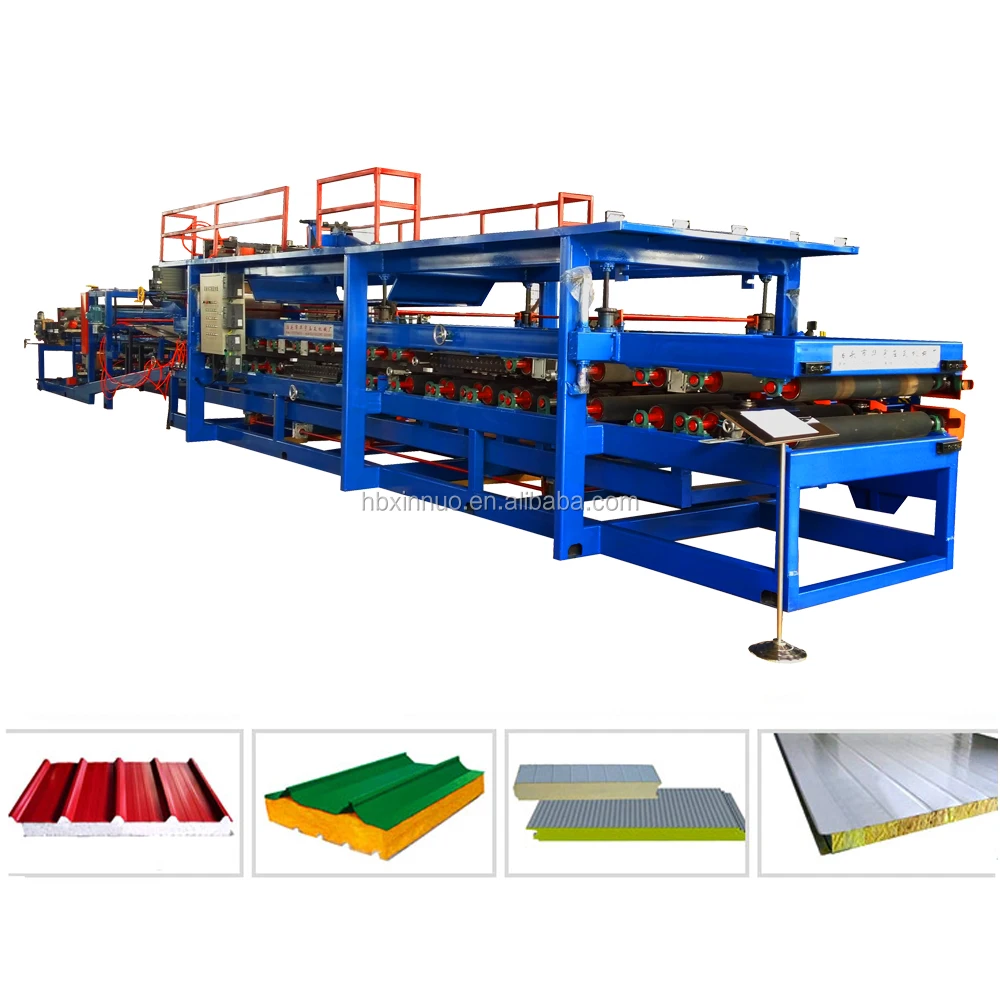

The Xinnuo Automatic EPS Sandwich Panel Making Machine is a state-of-the-art roll forming machine designed for producing sheet metal profiles, specifically sandwich panels for roofs and walls. This robust machine utilizes various coil materials including EPS, rock wool, and glass silk floss to create high-quality panels with customizable thickness and core options. It features a PLC control system, ensuring ease of operation and high precision during production. With its impressive production capacity and durable construction, this machine is ideal for manufacturers looking to enhance their production line efficiency.
Specifications
| Feature | Details |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Thickness of Plate | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 4 – 4.5 m/min (fastest), 2 – 2.5 m/min (slowest) |
| Total Power | About 30 KW |
| Weight | 25 tons |
| Dimensions (L×W×H) | 35000 mm × 2500 mm × 2600 mm |
Additional Information
Terms of Payment: 30% down payment via T/T, remaining 70% after inspection before delivery.
Delivery: 60 days after advance payment receipt.
Service: Technician will be sent to assist with installation; buyer covers all associated costs.
Warranty: 12 months limited warranty; parts are free during warranty, but shipping costs are borne by the buyer.
Note: Custom machine designs available based on your specifications.
Product Pictures
