sandwich panel making machine roll forming machine for sheet metal profiles
Inquire NowDescription
The Xinnuo automatic EPS sandwich roof and wall panel roll forming machine is a state-of-the-art production line designed for manufacturing high-quality sandwich panels. This versatile machinery can handle various coil materials, including EPS, rock wool, and glass silk floss, making it ideal for producing insulated roofing and wall panels. With its advanced PLC control system, the machine offers easy operation, high precision, and stable performance. Its robust design ensures longevity, while the compact size makes it suitable for various production environments.
Key features include:
- Production capacity ranging from 2 to 4.5 meters per minute, depending on the glue used.
- Plate thickness adjustable from 0.3 to 0.8 mm and core thickness from 20 to 300 mm.
- Total power consumption of approximately 30KW, with a weight of 25 tons.
- Comprehensive production line including decoiling, roll forming, laminating, cutting, and runout table processes.
- Customizable design options to accommodate diverse production needs.
Specifications
| Attribute | Details |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 4-4.5 m/min (fastest), 2-2.5 m/min (slowest) |
| Total Power | About 30KW |
| Weight | 25 tons |
| Dimensions | Length: 35000 mm × Width: 2500 mm × Height: 2600 mm |
Additional Information
Terms of Payment: 30% down payment via T/T, remaining 70% after factory inspection before delivery.
Delivery Time: 60 days after receipt of advance payment.
Service: Technicians will be sent to assist with machine setup, costs for visa, travel, and accommodation are to be covered by the buyer.
Warranty: 12 months limited warranty; parts are free during warranty, but shipping fees are the buyer’s responsibility.
Note: Custom designs are available according to client specifications.

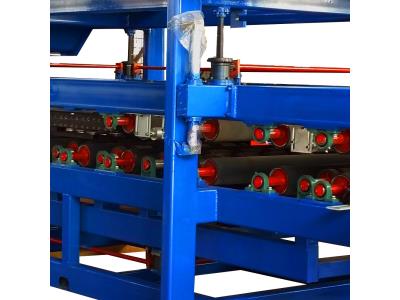

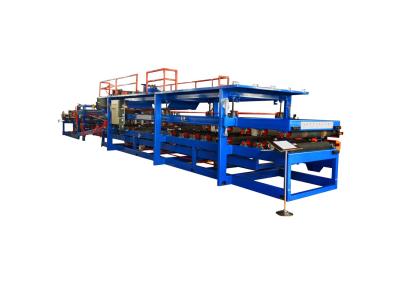

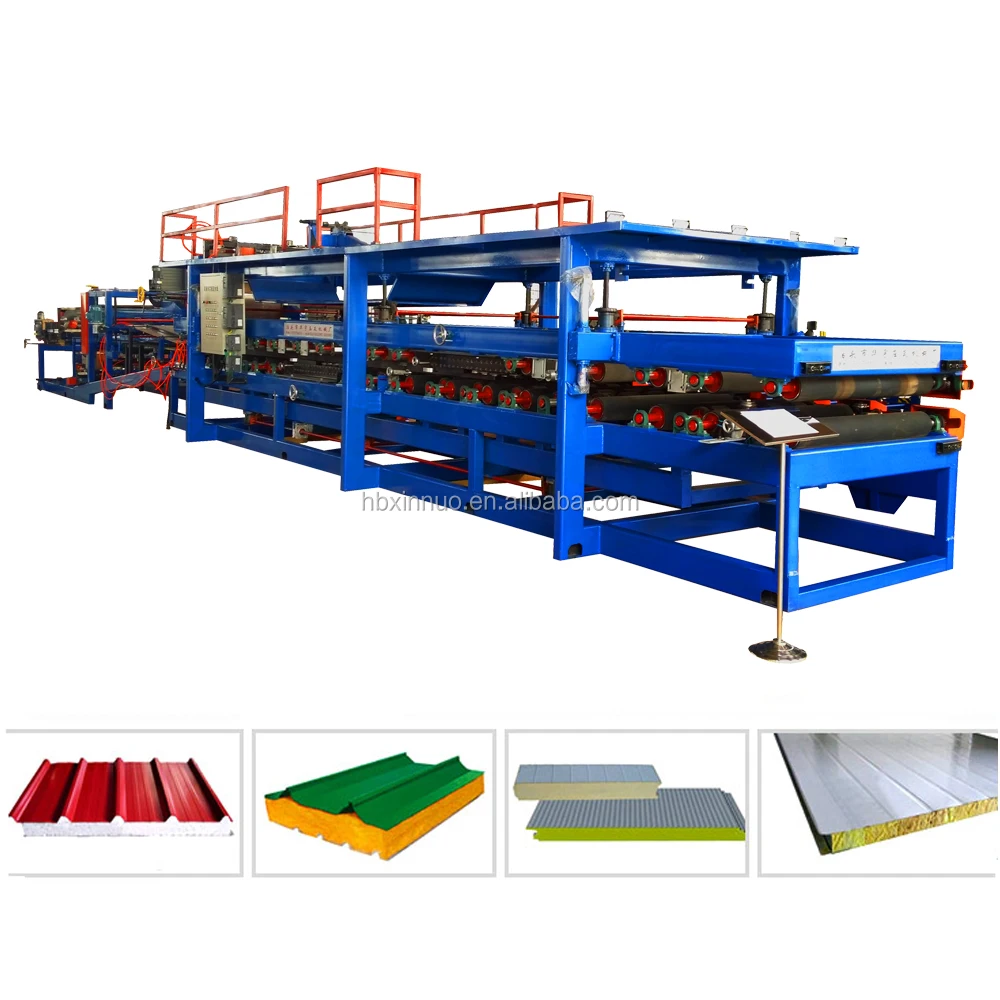

Product Pictures
