sandwich panels machinery sandwich panel production line
Inquire NowDescription
The EPS Sandwich Panels Machinery Sandwich Panel Production Line is a state-of-the-art solution designed for the efficient production of EPS and rock wool sandwich panels. This automatic machine features a robust construction, ensuring high precision and stability during operation. With capabilities to handle various coil materials such as EPS, rock wool, and glass silk floss, it is ideal for producing panels with thicknesses ranging from 0.3mm to 0.8mm and core thicknesses between 20mm and 300mm. The production line is equipped with a PLC control system that simplifies operation, making it user-friendly while maintaining high production efficiency.
Specifications
| Feature | Specification |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 4 – 4.5 m/min (fastest), 2 – 2.5 m/min (slowest) |
| Total Power | Approximately 30 KW |
| Weight | 25 tons |
| Dimensions | Length 35000 mm × Width 2500 mm × Height 2600 mm |
Additional Information
Processing Technique: The production line includes a composite decoiler, roll forming, laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimming), cutting system, and runout table.
Terms of Payment: 30% down payment via T/T, remaining 70% after inspection before delivery.
Delivery: 60 days post-receipt of advance payment.
Service: Technicians will be sent to assist with machine setup; costs for travel and accommodation are the buyer’s responsibility.
Warranty: 12 months limited warranty, with parts provided free during warranty (shipping costs borne by the buyer).
Note: Custom designs are available based on customer specifications.

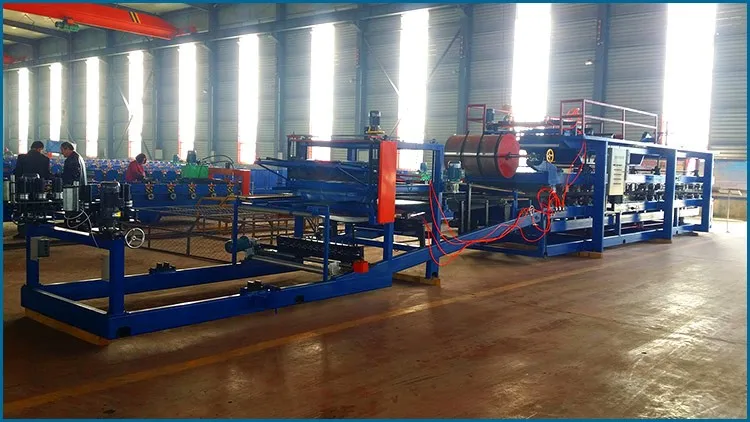

Product Pictures
