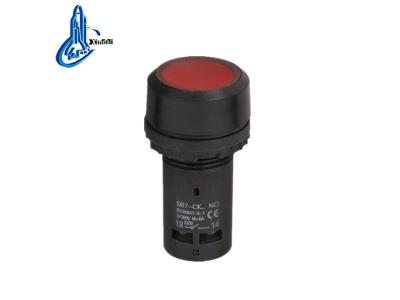

SB7-CW3465 push button light switch led illuminated push button switch
Inquire NowDescription
The SB7-CW3465 Push Button Light Switch is a premium LED illuminated push button switch designed for seamless control of electrical circuits. Suitable for AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, this switch excels in controlling signals and interlocking applications. Crafted with a robust zinc alloy body and high-grade anti-flame plastic, it ensures durability and safety. The special silver alloy contact offers superior resistance against electrical erosion, making it a reliable choice for both residential and commercial use. Ideal for indicating signals, warning signals, and emergency signals, this switch complies with GB/T14048.1 and IEC60947-5-1 standards, and is CE, ISO9001, ROHS, and UL certified.
Specifications
| Main Technical Parameter | Button Parameter | Signal Lamp Parameter |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | PF Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 Pushbutton | Brightness |
| Electrical Life | 500×10000 Pushbutton | Continuous Working Life |
Additional Information
- Brightness: 60cd/m²
- Continuous Working Life: 10×10000 hours
