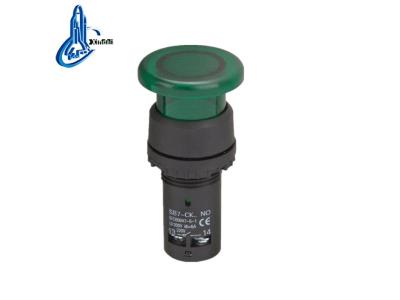

SB7-CWM31 22mm metal switch led pushbutton switch led light button switch
Inquire NowDescription
The SB7-CWM31 is a versatile 22mm metal pushbutton switch designed for both LED lighting and controlling electrical circuits. It efficiently operates with AC voltage up to 660V at 50Hz or 60Hz and DC voltage below 400V. This switch is primarily utilized for signal control and interlocking applications, making it ideal for various electrical setups. Crafted from durable zinc alloy and high-grade anti-flame plastic, the SB7-CWM31 ensures long-lasting performance. Its contacts are made from a special silver alloy, providing excellent resistance to electrical erosion. Additionally, the integrated signal lamp is suitable for AC voltage circuits up to 380V and DC voltage below 380V, perfect for indicating signals, warnings, and emergencies. Compliance with GB/T14048.1 and IEC60947-5-1 guarantees safety and reliability, while CE, IOS9001, ROHS, and UL certifications validate its quality.
Specifications
| Parameter | Pushbutton Switch | Signal Lamp | ||
|---|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ | |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ | |
| Pf Withstand Voltage | AC 2.5KV/min | Voltage Wave | ±20% | |
| Mechanical Life | 100×10000 pushbutton | 50×10000 selector switch | ||
| Brightness | 60cd/m² | Electrical Life | 500×10000 pushbutton | |
| Continuous Working Life | 10x10000h | |||
Additional Information
- Compliant with GB/T14048.1 and IEC60947-5-1 standards.
- CE, IOS9001, ROHS, and UL certified.
