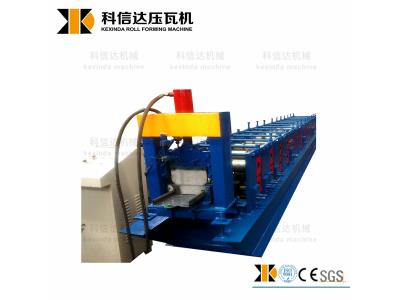

Scaffolding Foot Treadle Roll Forming Machine Production Line
Inquire NowDescription
The Scaffolding Foot Treadle Roll Forming Machine Production Line is engineered for efficiency and precision in producing high-quality scaffolding components. This advanced machine utilizes side wheel rotation forming technology, significantly reducing friction between rollers and coils, facilitating quick and easy debugging. Built with robust materials, it ensures durability and reliability in high-demand manufacturing environments.
Specifications
| Attribute | Details |
|---|---|
| Plate Material | Galvanized plate/strip steel |
| Thickness of the plate | 1.5-2mm (different thickness is ok) |
| Machine body | 350mm H steel |
| Wall thickness of the main forming machine | 18mm steel plate |
| Transmission chain | 2 |
| Reducer | 15kw |
| Roller material | GCr15 with quenched treatment 62-64°C |
| Diameter of active shaft | 80mm, 45# steel |
| Main power | 7kw |
| Control system | PLC |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operational error, the buyer will bear the shipping fee.
After-sale service: We send a technician to your country to fix the machine. The buyer should cover all costs including visa, roundtrip ticket, suitable accommodation, and a salary of $100/day.
