scaffolding planks deck roll forming machine
Inquire NowAutomatic sheet steel cold plate walk board u scaffolding planks deck roll forming machine
Automatic sheet steel cold plate walk board u scaffolding planks deck roll forming machine
Product Description

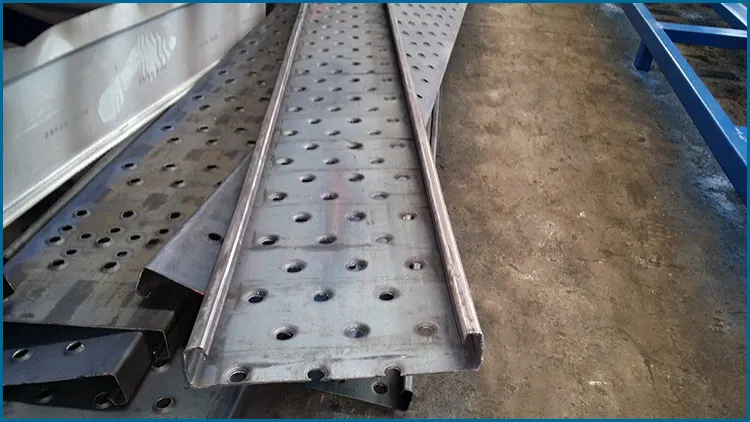

Scaffold walk board forming machine has many advantages: well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conviently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, the warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
1.? MAIN PARAMETERS:
| 1 | Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 1250mm |
| 3 | Roller station | 14 rows |
| 4 | Thickness of feeding material | 0.3-0.8mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers’ material | 45# steel with chromn on the surface |

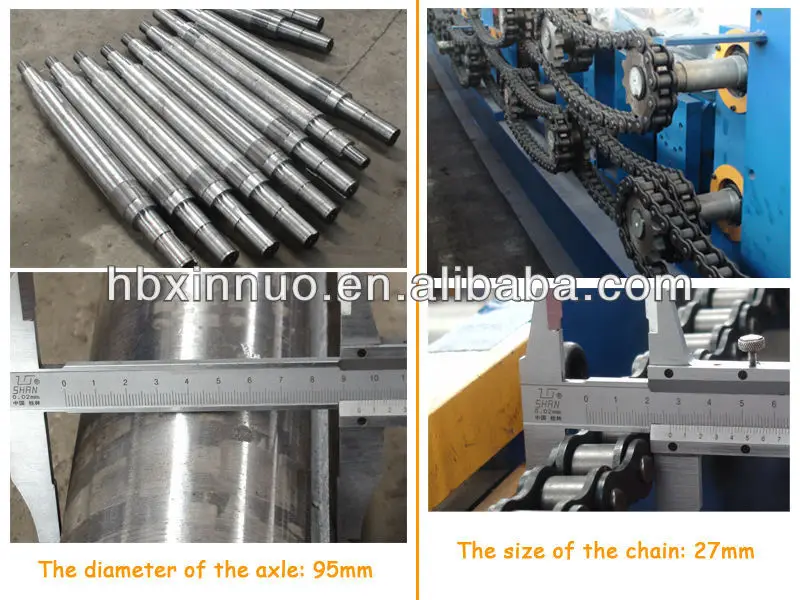

| 7 | Diameter of shaft | 80mm |
| 8 | Voltage | 380V 50Hz 3phases |
| 9 | Wall thickness of main forming machine | 16mm steel plate |
| 10 | Main forming machine body | 300 mm H steel |

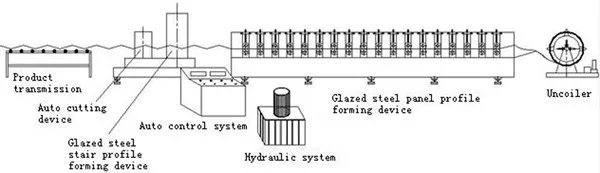

2.? PROCESS DRAWING:

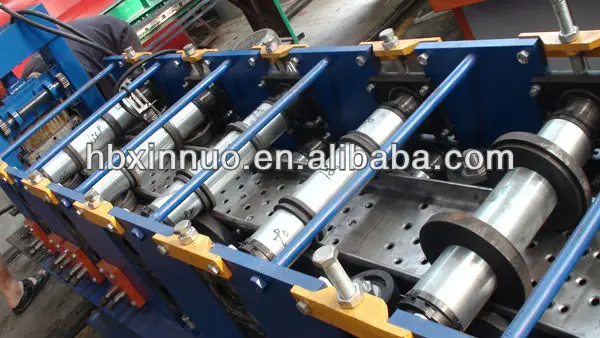

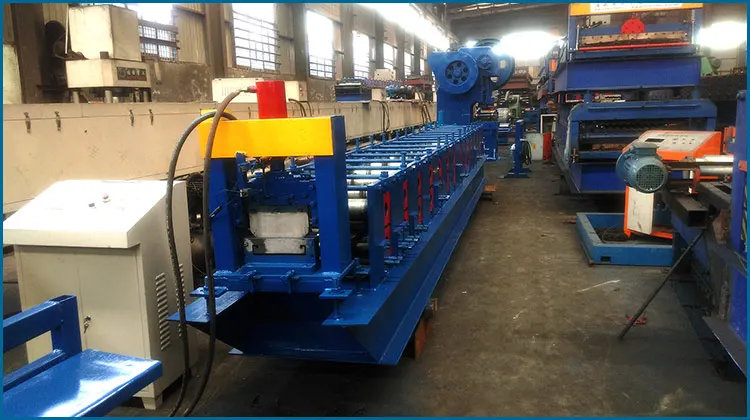

MACHINE PICTURES
Packing & Shipping
| Packaging Details: | nude with simple plastic films in the container |
|---|---|
| Delivery Detail: | 30 workdays after we receive the 30% advance payment |
