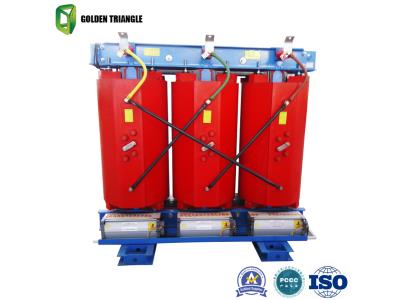

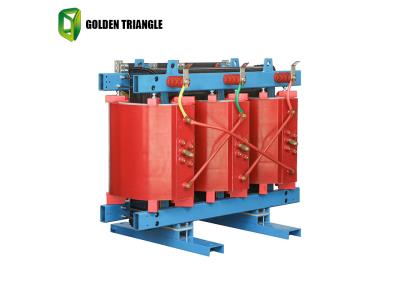

SCB10 Dry type transformer
Inquire NowDescription
The SCB10 Dry Type Transformer is designed for indoor use, prioritizing energy efficiency and high-quality performance. With a robust copper winding construction, this transformer boasts low losses and cost-effectiveness. It is tailored to meet customer specifications, making it a versatile choice for various applications. Backed by 23 years of manufacturing experience and ISO 9001 and IEC60076 certifications, this transformer is a reliable option for those seeking superior energy-saving solutions.
Key features include full copper winding for enhanced conductivity, low energy loss for cost savings, and a commitment to customer customization. It is a trusted supplier for major ports and utilities, ensuring quality and reliability in its operations.
Specifications
| Rated Capacity (kVA) | Voltage Group (kV) | Connection Method | No-load Loss (kW) | Load Loss (kW) | Weight (kg) | Outline Dimension (L x W x H) mm | Dimensions with Protective Casing (L x W x H) mm |
|---|---|---|---|---|---|---|---|
| 50 | 0.5 | 1.5 | 610 | 1000 x 870 | 1160 x 1700 x 1400 | ||
| 100 | 0.7 | 2.2 | 915 | 1100 x 870 | 1350 x 1800 x 1400 | ||
| 160 | 0.88 | 2.96 | 1200 | 1500 x 870 | 1380 x 2200 x 1500 | ||
| 200 | 0.98 | 3.5 | 1400 | 1530 x 870 | 1420 x 2250 x 1500 | ||
| 250 | 1.1 | 4 | 1600 | 1550 x 870 | 1450 x 2300 x 1500 | ||
| 315 | 1.31 | 4.75 | 1800 | 1580 x 870 | 1550 x 2300 x 1600 | ||
| 400 | Dyn11 | 1.53 | 5.7 | 2200 | 1740 x 870 | 1710 x 2450 x 1600 | |
| 500 | 35~38.5 | 0.4 | 1.8 | 7 | 2500 | 1740 x 870 | 1900 x 2450 x 1600 |
| 630 | Yyn0 | 2.07 | 8.1 | 2900 | 1860 x 870 | 1980 x 2550 x 1700 | |
| 800 | 2.4 | 9.6 | 3500 | 1860 x 870 | 2180 x 2550 x 1700 | ||
| 1000 | 2.7 | 11 | 4200 | 1900 x 1120 | 2265 x 2600 x 1800 | ||
| 1250 | 3.15 | 13.4 | 4900 | 1950 x 1120 | 2355 x 2650 x 1800 | ||
| 1600 | 3.6 | 16.3 | 5800 | 2000 x 1120 | 2380 x 2700 x 1800 | ||
| 2000 | 4.25 | 19.2 | 6600 | 2100 x 1120 | 2480 x 2800 x 1800 | ||
| 2500 | 4.95 | 23 | 7500 | 2200 x 1120 | 2550 x 2900 x 1800 |
Additional Information
Note: Tapping range of high voltage is ± 5%; ± 2× 2.5%, Frequency: 50Hz.
