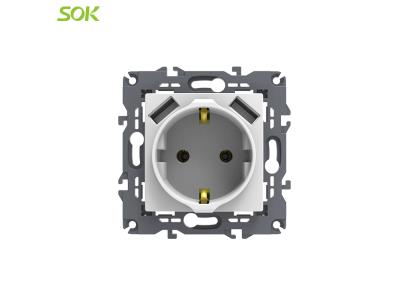

Schuko power socket with double USB port 3.1A 16A with Screw Terminal
Inquire NowDescription
Schuko power socket with double USB port 3.1A 16A is designed to enhance your convenience in daily life. This innovative socket features two USB ports, delivering a total output of 3.1A, making it compatible with a wide range of electronic devices. Ideal for modern homes and offices, it allows for simultaneous charging and usage of multiple devices, ensuring that your gadgets are always powered up and ready to go.
Specifications
| Attribute | Details |
|---|---|
| Model No. | S81/16U/USB/2 |
| Product Type | USB charger + socket outlet |
| Electrical Parameters | 250V~ 16A, 5V DC 3.1A |
| Device Presentation | Complete product, matches with S80 series cover |
| Outlet Configuration | 2P + E with shutter |
| Outlet Standard | Schuko |
| Ground Lug Position | Straight 0° position |
| Number of Modules | 1 module |
| Fixing Mode | By screws and claws |
| Surface Finishing | Glossy |
| Surface Treatment | Untreated / Painted |
| Storage Temperature | -20…60 °C |
| Operating Temperature | -5…40 °C |
| Protection Type | Against short-circuits, Battery charge protection, Automatic restart after ground fault or main power loss, Thermal protection, Automatic overload protection |
| Connections – Terminals | Screw terminals |
| Number of Terminals | 3 |
| Wiring Connection Capacity | 1.5…2.5 mm² for rigid and stranded cables |
| Material | PC (polycarbonate): centre plate and casing |
| Wire Stripping Length | 12.5 mm |
| Standards | EN/IEC 60950 IEC 60884-1 |
| Certification | CE |
| Service Life | 20000 h at 15 W |
| IP Degree of Protection | IP20 |
