Wide application range

Detail information of products

SCLL，MECHANICAL ALUMINIUM CONNECTOR

Application:

Used for intermediate connection of copper cable, aluminium cable and aluminium alloy cable in low voltage.

Material:

Body: high strength aluminium alloy

Bolts: aluminium alloy

Surface: tin plated

Feature:

? No needs of crimping tools but only a socket spanner or a wrench.

? Torque controlled shear head bolts won’t cause any damage to conductor, and make connectors’ working performance more stable.

? Wide application range

? Threaded design of inner surface provides superior electrical and mechanical performance.

? Prefilled with jointing compound.

Standard: IEC 61238-1:2003

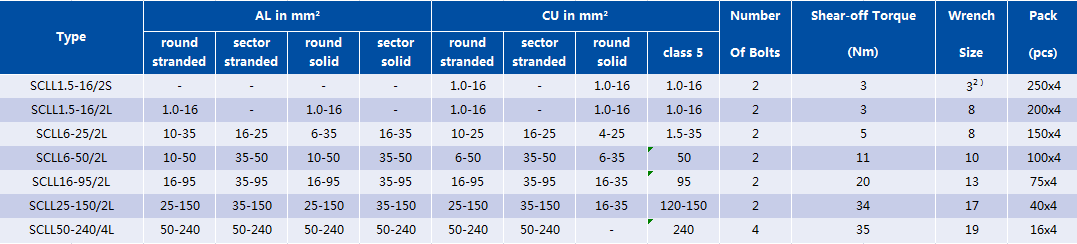

Note: 1) Shear-off torque is only a reference during installation.

2) SCLL1.5-16/2S is equipped with hex socket stainless steel bolts.

3) Depending on different conductor material or conductor type, indicated values may differ from test values acc. to IEC 61238-1. The use of class 5 conductors has to be approved by MELEC.
