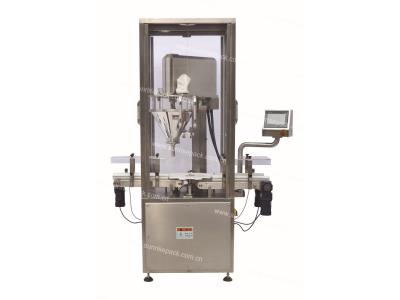

Semi-automatic Auger Filling Machine
Inquire NowDescription
The SR-2A-2 Semi-automatic Auger Filling Machine is a versatile and efficient solution designed for precise filling of various powdered materials. Ideal for industries dealing with kohl, glitter powder, pepper, cayenne pepper, milk powder, rice flour, albumen powder, soy milk powder, coffee powder, medicine powder, additives, essences, and spices, this machine seamlessly integrates into a complete filling line when paired with compatible equipment. The robust stainless steel construction ensures durability, while the level split hopper design facilitates easy cleaning without the need for tools.
Key features include a servo-motor driven auger and a servo-controlled turntable that provide stable performance. The intuitive PLC, touch screen, and weighing module control system enhance usability, allowing operators to efficiently manage the filling process. This machine also includes an adjustable height handwheel for easy head position adjustments and a pneumatic can-lifting device that prevents spills during filling. The weight-chosen device guarantees that every product meets quality standards, eliminating the need for subsequent culling. Additionally, it can save up to 10 sets of parameter formulas for quick access during operations.
Specifications
| Specification | Details |
|---|---|
| Model | SR-2A-2 |
| Container Size | φ20-100mm, H 15-150mm |
| Packing Weight | 1 – 500g |
| Packing Accuracy | ≤ 100g, ±2%; 100 – 500g, ±1% |
| Filling Speed | 20 – 50 can/min |
| Power Supply | 3P 380V 50Hz |
| Air Compression | 6 kg/cm², 0.1m³/min |
| Total Power | 1.8KW |
| Total Weight | 250kg |
| Overall Dimension | 1000 × 720 × 1800mm |
| Hopper Volume | 35L |
Additional Information
- Optional devices include:
- Leakproof acentric device
- Pneumatic flap
- Dust collecting cover
- Vibrating device
