SFF-TA-1002 Gen-Z

Inquire Now

Description

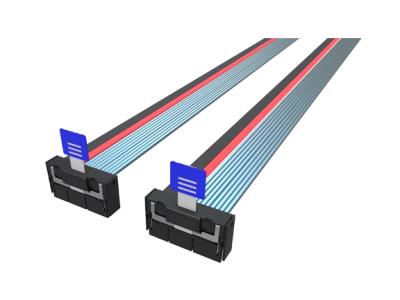

The Gen-Z interconnect solution is engineered for high-density applications, providing exceptional flexibility and signal integrity for high-speed signaling. Compliant with the SFF-TA-1002 connector system, this modular interconnect system from Zhaolong offers various configurations (1C, 2C, and 4C) in a compact design, ensuring robust mechanical performance that maximizes space efficiency within your system.

With a pitch of just 0.6mm, the Gen-Z connectors are designed to support the demanding requirements of PCIe applications, facilitating up to 56 GT/s PAM4 and 112 GT/s PAM4 signal rates. The connectors also support simultaneous power and data transmission, making them suitable for a wide range of applications including switches, routers, servers, and more.

Specifications

Connector Type Design Impedance Signal Rate Wire Gauge
1C Straight Plug Pitch 0.6mm 85 ohm Up to 56 GT/s PAM4 30-34 AWG
1C Right Angle Plug Pitch 0.6mm 85 ohm Up to 56 GT/s PAM4 30-34 AWG
2C Straight Plug Pitch 0.6mm 85 ohm Up to 56 GT/s PAM4 30-34 AWG
2C Right Angle Plug Pitch 0.6mm 85 ohm Up to 56 GT/s PAM4 30-34 AWG
4C Straight Plug Pitch 0.6mm 85 ohm Up to 56 GT/s PAM4 30-34 AWG
4C Right Angle Plug Pitch 0.6mm 85 ohm Up to 56 GT/s PAM4 30-34 AWG

Additional Information

Features and Benefits:

  • Excellent SI performance with up to 56 GT/s PAM4 and 112 GT/s PAM4 support.
  • Customizable options for side exit and other cable configurations.
  • Ideal for high-speed applications including PCIe 5.0 32.0GT/s.

Target Market:

  • Switches, Routers, and Servers
  • Storage and RAID Systems
  • External Storage Data Systems
  • SAS/SATA/PCIe HBA Interfaces
  • Direct Attached Storage (DAS)
