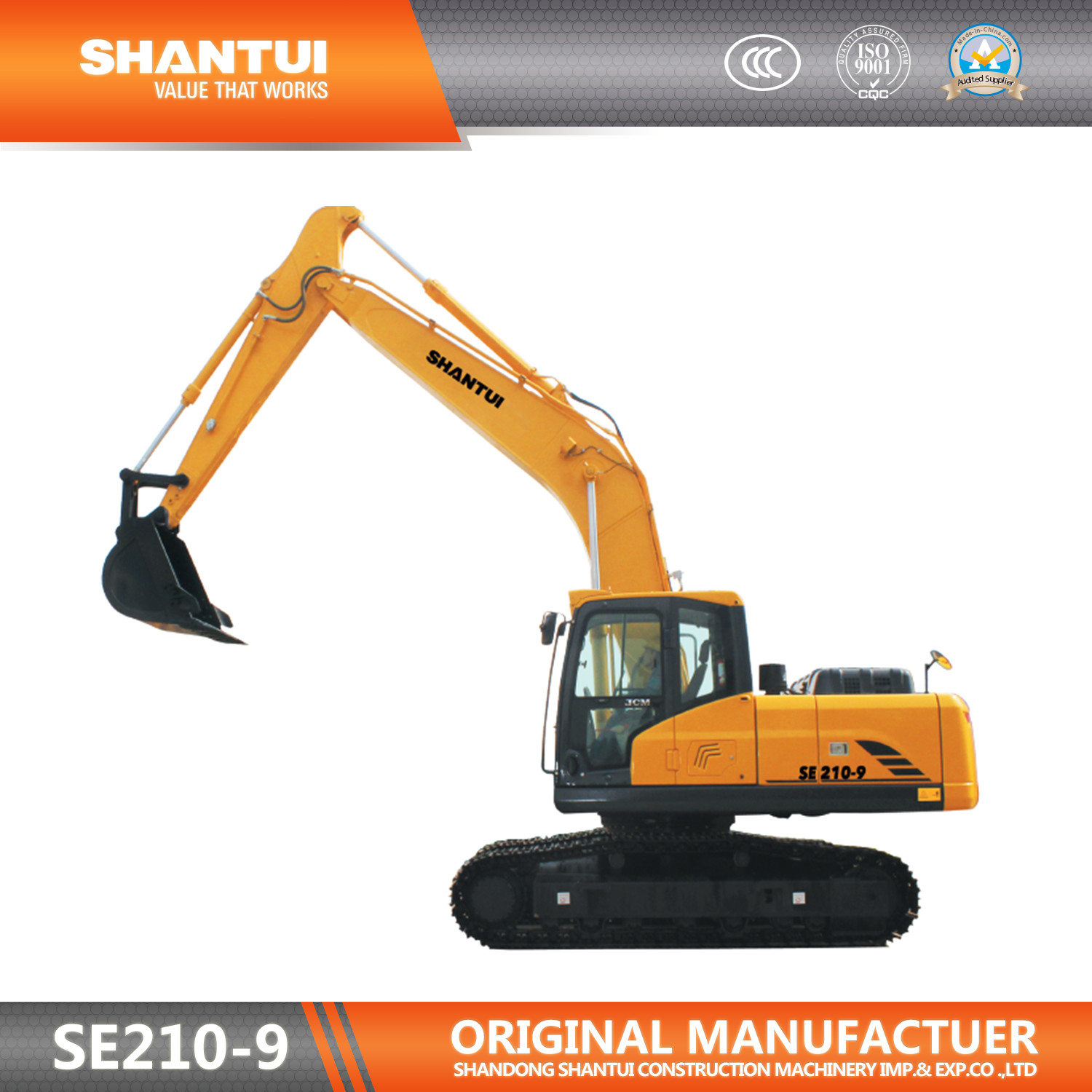

Shantui 21tons Crawler Excavator (SE210-9)
Inquire NowDescription
The Shantui SE210-9 Crawler Excavator is a robust medium-sized workhorse designed for high efficiency and energy-saving performance in construction and excavation projects. Equipped with a China-III compliant power system, the excavator utilizes a percentage accelerator control and a negative flow controlled hydraulic system that significantly reduces energy loss while maintaining excellent motion coordination. The innovative paralleling radiator effectively prevents overheating, while the optimized exhaust system minimizes noise and maximizes engine power utilization.
With over fifteen years of collaboration with Komatsu of Japan, Shantui has honed its expertise in excavator manufacturing, ensuring that the SE210-9 excels in technical excellence, production management, and quality control. This excavator not only guarantees reliability but also ensures user comfort and ease of operation through its intelligent electronic control system, spacious cab, and ergonomic design.
Specifications
| Category | Specification | Details |
|---|---|---|
| ENGINE | Model | Weichai WP7 |
| Type | Water-cooling, 6-cylinders inline, turbocharging, air-to-air | |
| Displacement | 7.14L | |
| Power output | 116kW / 2000 rpm | |
| HYDRAULIC SYSTEM | Pump | Imported |
| Type | Variable plunger pump | |
| TRAVEL SYSTEM | Travel motor | Variable axial piston motor |
| Travel brakes | Lubricated double-disc | |
| Gradeability | 70% | |
| OIL CAPACITY | Fuel tank | 360 L |
| SWING SYSTEM | Brake | Pressure Release Mechanical Braking |
| Swing speed | 11.5 rpm | |
| BUCKET | Bucket capacity | Backhoe bucket 0.9m3 (SAE) |
| Number of bucket teeth | 4 | |
| Bucket width | 1230 mm | |
| Arm length | 2.925 m | |
| Maximum digging reach | 9.845 m / 9.671 m | |
| Maximum digging depth / height | 6.605 m / 9.281 m | |
| Maximum dumping height | 6.48 m | |
| Minimum swing radius | 3.5 m |
Additional Information
– The excavator features an intelligent electronic control system with built-in GPS and GPRS modules for remote monitoring and data transmission.
– A spacious cab designed with ergonomic principles offers comfort with adjustable seating and a full-automatic A/C system.
– The excavator is equipped with a multi-stage power control allowing users to select different working modes based on their needs.
– Optional attachments such as breaking hammers and quick change devices enhance its functionality for various operations.
