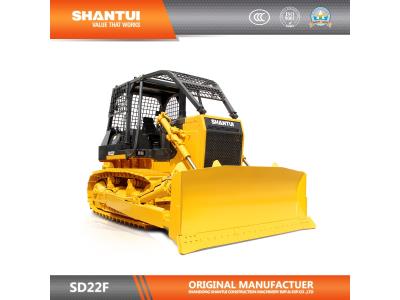

Shantui 220HP SD22F Lumbering Bulldozer
Inquire NowDescription
The Shantui 220HP SD22F Lumbering Bulldozer is expertly designed for the rigorous demands of lumbering environments. This robust machine features a specialized ROPS cab that enhances operator safety while working in challenging conditions. Known for its cost-effectiveness compared to other brands globally, the SD22F stands out with its powerful performance and reliability.
Equipped with a wide range of features, this bulldozer is ideal for various tasks including lumbering, skidding, and traction transport within forests. Its mechanical winch not only aids in lumber transportation but also provides self-rescue capabilities, ensuring operational safety within the dense confines of rainforests and forest farms.
With a standard lumbering blade, the SD22F effectively clears obstacles along lumbering paths, making it an essential asset for forestry operations.
Specifications
| Attribute | Value |
|---|---|
| Ground pressure (Mpa) | 0.077 |
| Min. turning radius (m) | 3.3 |
| Gradeability (°) | 30 |
| Engine Model | Chongfa NT855-C280S10 |
| Rated horsepower (Kw) | 162 |
| Torque Converter | 3-element 1-stage 1-phase |
| Transmission | Planetary gear, multi disc clutch hydraulically connected with forced lubrication |
| Forward speed (km/h) | 1st 0-3.6, 2nd 0-6.5, 3rd 0-11.2 |
| Reverse speed (km/h) | 1st 0-3.6, 2nd 0-6.5, 3rd 0-11.2 |
| Carrier rollers | 2 each side |
| Track rollers | 6 each side |
| Track type | Assembled single-grouser |
| Width of track shoes (mm) | 610 |
| Max. pressure (MPa) | 14 |
| Dozing capacity (m³) | 6.4 |
| Blade height (mm) | 1315 |
| Max. drop below ground (mm) | 540 |
| Ripper type | 3-shank ripper |
| Max. digging depth (mm) | 666 |
| Overall dimensions (mm) | 6790 x 3725 x 3480 |
Additional Information
- Product Strengths:
- Equipped with a specialized lumbering ROPS shelter for safety.
- Wide 610mm tracks for improved trafficability and self-rescue performance.
- Standard lumbering blade for efficient obstacle removal.
- Applicable Working Conditions: Ideal for forest lumbering and road barrier clearance operations.
- Current Sales Conditions: Highly popular and sold worldwide.
