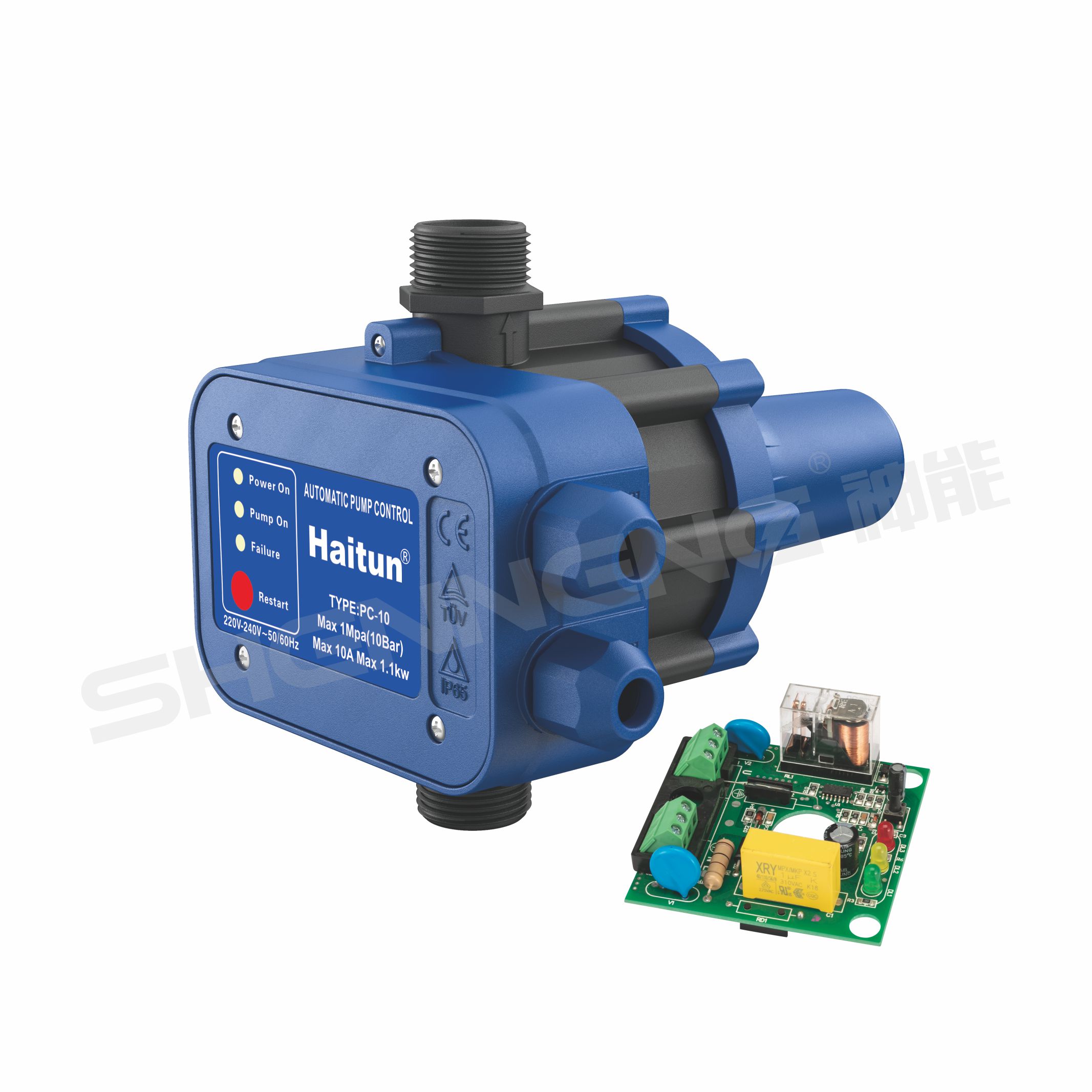

Shenneng Automatic pump control PC-10
Inquire NowDescription
The Shenneng Automatic Pump Control PC-10 is a highly efficient device designed to automatically start and stop water pumps, ensuring optimal functionality while maintaining competitive pricing. This reliable control unit is perfect for various applications, providing peace of mind with its automatic features. It protects your pump from running dry and seamlessly restarts it after power interruptions, making it an essential tool for any water management system.
- Automatic Operation: The PC-10 automatically starts and stops the pump based on water availability.
- Water Shortage Protection: Stops the pump in the event of low water levels to prevent damage.
- Forced Start Feature: Ensures the pump can be manually overridden if needed.
- Flexible Options: Offers models with adjustable starting pressures and automatic restart functions after water shortages.
Specifications
| Attribute | Details |
|---|---|
| Starting Pressure | 1.5bar or 2.2bar |
| Max Rated Current | 10A |
| Max Allowable Pressure | 10bar |
| Rated Voltage | 110V or 220V |
| Frequency | 50/60HZ |
| Max Ambient Temperature | 40℃ |
| Max Liquid Temperature | 60℃ |
| Protection Degree | IP65 |
| Dimensions (Box Size) | 23x17x18 cm |
| Packing Size | 52x47x38 cm |
| Net Weight | 13.00 kg |
| Gross Weight | 16.20 kg |
| PCS/CTN | 12 |
| 20GP Quantities (PCS) | 3816 |
Additional Information
- Optional Features:
- PC-10A: Adjustable starting pressure (1.5bar-3.0bar).
- PC-10B: Automatic restart after water shortage with adjustable intervals (8S, 30S, 1min, 10min, 30min, 1hr, 2hr).
- Connections: G1″ male joint screw for easy installation to pumps.
- Power Cable Length: Customizable based on requirements.
