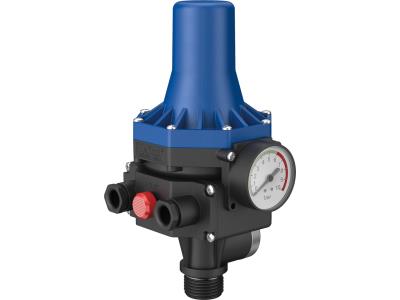

Shenneng Automatic pump control PC-12
Inquire NowDescription
The Shenneng Automatic Pump Control PC-12 is designed to efficiently manage your water pump operations by enabling automatic start and stop functions. With its robust build quality and competitive pricing, this device ensures optimal performance while preventing operational issues such as dry running. The PC-12 not only enhances convenience but also safeguards your pump, making it an essential component for effective water management.
Key features include the ability to stop the pump during water shortages, automatic restart after power outages, and a forced start option. This pump controller is an ideal choice for both residential and commercial applications, ensuring reliable water supply whenever needed.
Specifications
| Attribute | Details |
|---|---|
| Starting Pressure | 1.5 bar or 2.2 bar |
| Max Rated Current | 10 A |
| Max Allowable Pressure | 10 bar |
| Rated Voltage | 110V or 220V |
| Frequency | 50/60 Hz |
| Max Ambient Temperature | 40℃ |
| Max Liquid Temperature | 60℃ |
| Protection Degree | IP54 |
Additional Information
Options available include:
- PC-12A: Adjustable starting pressure during installation (1.5 bar – 3.0 bar).
- PC-12M: Automatic restart after water shortage with adjustable restart intervals (8 seconds to 2 hours).
The PC-12 is equipped with a G1″ male joint screw for easy connection to water pumps and is available in various colors. Power cable length can also be customized as per your requirements.
