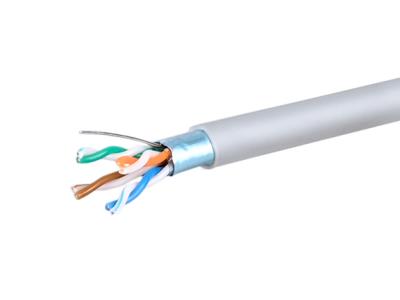

Shield CAT5e
Inquire NowDescription
The Shield CAT5e is a top-tier networking cable designed for high-speed data transmission, boasting exceptional tensile properties thanks to its high-quality oxygen-free copper construction. This cable is engineered with optimized high-speed cable pitch technology, ensuring reliable performance even under demanding conditions. It has successfully passed rigorous third-party testing organizations, supporting a bandwidth of 250MHz, making it ideal for both commercial and residential applications. The product also adheres to strict environmental standards, fully complying with REACH and RoHS requirements.
Specifications
| Parameter | Details |
|---|---|
| Conductor | Solid bare copper 23AWG |
| Insulation Material | HDPE |
| Insulation Diameter | 1.12±0.05 mm |
| Single Layer Total Shield | Aluminum foil |
| Double Layer Total Shield | Aluminum foil + tinned copper |
| Sheath Diameter (F/UTP) | 7.4±0.4 mm |
| Sheath Diameter (SF/UTP) | 7.8±0.4 mm |
| Sheath Material | LSZH |
| Working Temperature | -30 °C ~ 60 °C |
Additional Information
Reference Standards:
- GB/T 18015
- ISO/IEC 11801
- IEC 61156-5
- EN 50173-1
- EN 50173-2
- EN 50288-3-1
- ANSI/TIA-568.2-D
- IEC 60332-1-2
- IEC 60754-2
- IEC 61034-1
- IEC 61034-2
- UL444
- UL1581
- UL1666
