Shrink Tunnel
Inquire NowDescription

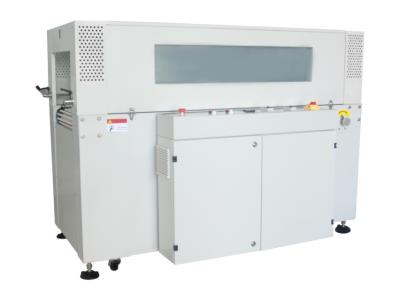

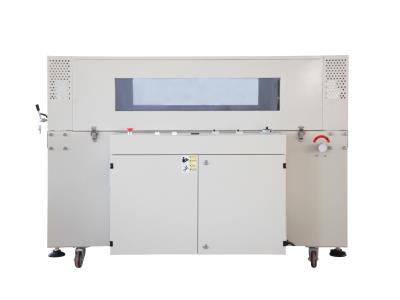

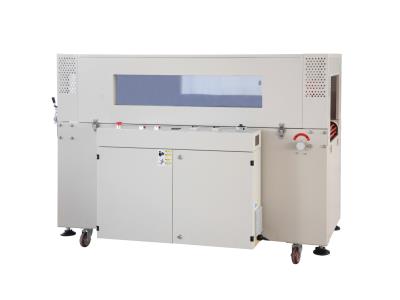

BS-5030X Shrink Tunnel is designed to supply heated air within an enclosed chamber, effectively shrinking polymeric film around packages. This process not only enhances the physical protection of products but also significantly improves their appearance. The tunnel features an electronically controlled conveyor system that transports packages smoothly through the shrink process. Additionally, it is equipped with a glass window, allowing operators to monitor the shrinking process easily.
Specifications
| Parameter | Details |
|---|---|
| Model | BS-5030X |
| Voltage (v/hz) | 3 Phase 380/50 or 3 Phase 220/60 |
| Power (kw) | 16 |
| Max. Packing Size (W×H) (mm) | 400×250 |
| Speed (m/min) | 0~25 |
| Tunnel Size (L×W×H) (mm) | 1500×500×300 |
| External Dimensions (L×W×H) (mm) | 1800×990×1300 |
| Net Weight (kg) | 300 |
Additional Information
For optimal performance, ensure that the shrink tunnel is operated according to the manufacturer’s guidelines, and regularly maintain the equipment to ensure longevity and efficiency.
